Air Fuel Ratio Sensor: Installation

INSTALL AIR FUEL RATIO SENSOR

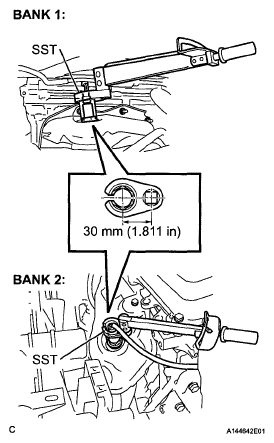

1. Using SST, install the 2 air fuel ratio sensors to the front pipe assembly.
  SST 09224-00010

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  NOTE: The torque shown above should be used for tightening without using SST. When the SST is used for tightening, the torque should be calculated based on the length of the SST (See REPAIR INSTRUCTION ).
2. Connect the 2 air fuel ratio sensor connectors.

  Fig 1: Identifying Air Fuel Ratio Sensor Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
