Power Source Mode does not Change to ON (IG and ACC): Wiring Diagram

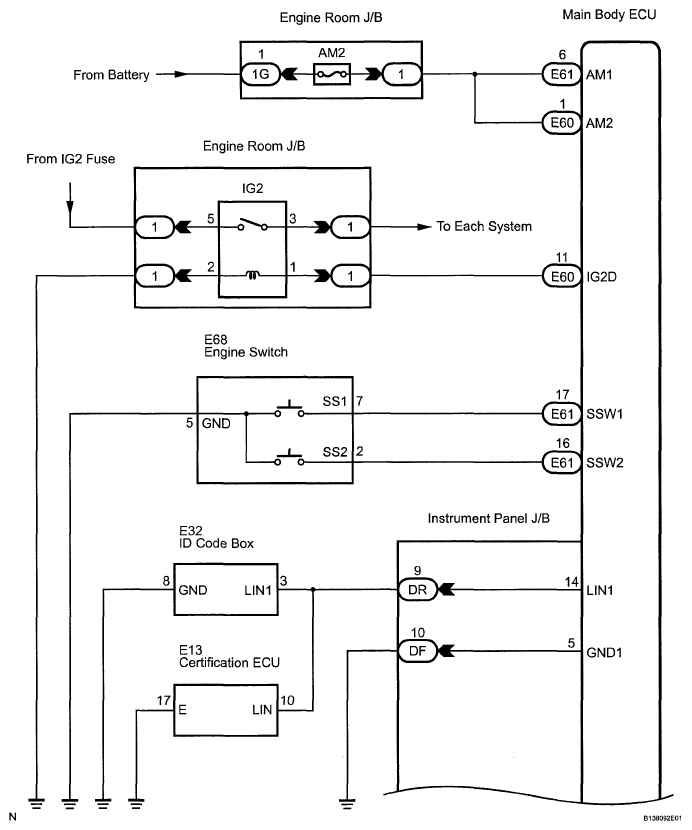

Fig 1: Engine Switch - Wiring Diagram (1 Of 2)
G05248888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

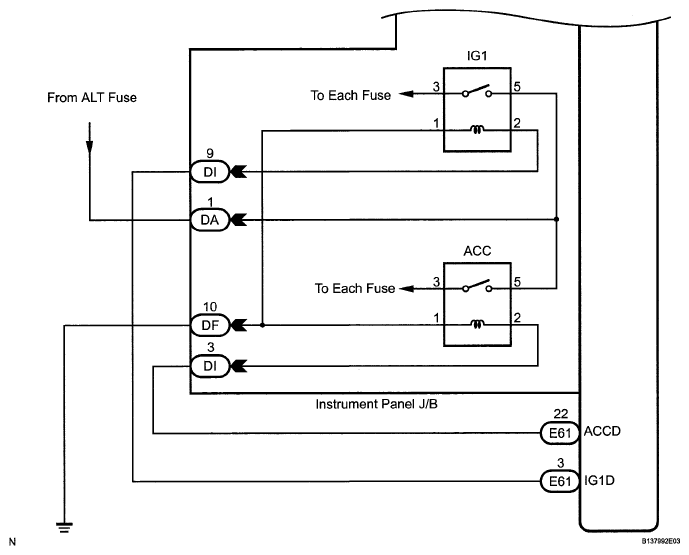

Fig 2: Engine Switch - Wiring Diagram (2 Of 2)
G05248889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
