Power Source Mode does not Change to ON (ACC): Wiring Diagram

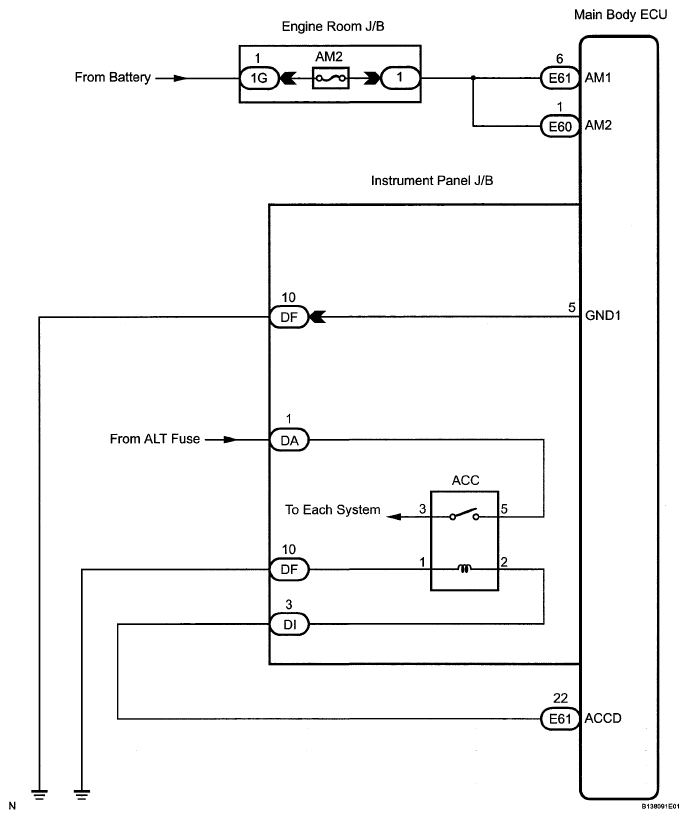

Fig 1: Engine Switch - Wiring Diagram

G05248904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
