Instrument Panel Safety Pad: Reassembly

  1. INSTALL NO. 2 DEFROSTER NOZZLE GARNISH
    1. Engage the 3 claws < A >.
    2. Engage the 3 claws < B > and install the No. 2 defroster nozzle garnish as shown in the illustration.
      Fig 1: Installing No 2 Defroster Nozzle Garnish
      G05253813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH
    1. Engage the 3 claws < A >.
    2. Engage the 3 claws < B > and install the No. 1 defroster nozzle garnish as shown in the illustration.
      Fig 2: Installing No 1 Defroster Nozzle Garnish
      G05253814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 INSTRUMENT PANEL PIN
    1. Install the 4 No. 1 instrument panel pins with the 4 screws < l >.

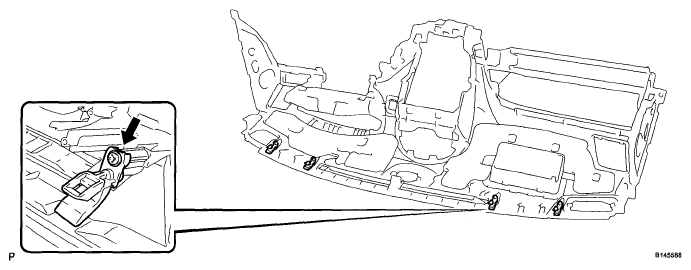

      Fig 3: Identifying Instrument Panel Pins
      G05253810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY  (See INSTALLATION )
  5. INSTALL NO. 1 METER HOOD RETAINER
    1. Install the 2 No. 1 meter hood retainers with the 2 screws < l >.
      Fig 4: Locating Meter Hood Retainers Screws
      G05253809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
    1. Engage the 2 claws and install the automatic light control sensor.
  7. INSTALL NAVIGATION ANTENNA ASSEMBLY  (See INSTALLATION )
    Fig 5: Identifying Automatic Light Control Sensor Claws
    G05253817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 3 INSTRUMENT PANEL WIRE
    1. Engage the 3 clamps.
    2. Connect the connector and install the No. 3 instrument panel wire.
  9. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY  (See INSTALLATION )
    Fig 6: Identifying Instrument Panel Wire Clamps
    G05253807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the No. 2 heater to register duct with the 4 screws < F >.
      Fig 7: Locating Heater To Register Duct Screws
      G05253806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the No. 1 heater to register duct with the 3 screws < F >.
      Fig 8: Locating Heater To Register Duct Screws
      G05253805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the defroster nozzle assembly with the 3 screws < F >.
      Fig 9: Locating Defroster Nozzle Assembly Screws
      G05253804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT
    1. Install the side No. 2 defroster nozzle duct with the 2 screws < F >.
      Fig 10: Locating Defroster Nozzle Duct Screws
      G05253803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT
    1. Install the side No. 1 defroster nozzle duct with the 2 screws < F >.
      Fig 11: Locating Defroster Nozzle Duct Screws
      G05253802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
