Instrument Panel Safety Pad: Installation

  1. INSTALL NO. 3 INSTRUMENT PANEL STAY
    1. Engage the 2 claws and install the 2 No. 3 instrument panel stays.
      Fig 1: Identifying Instrument Panel Stays
      G05253801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 INSTRUMENT PANEL CLIP
    1. Engage the 3 claws and install the 3 No. 1 instrument panel clips.

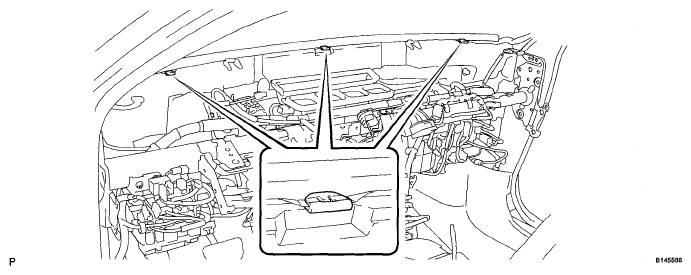

      Fig 2: Identifying Instrument Panel Clips
      G05253800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (w/o DVD Player)
    1. Engage the 5 claws.
      NOTE: Do not allow the wire harness to get caught in the claws.
    2. Install the 4 clips.
    3. Install the 5 bolts < G > and nut < H >.

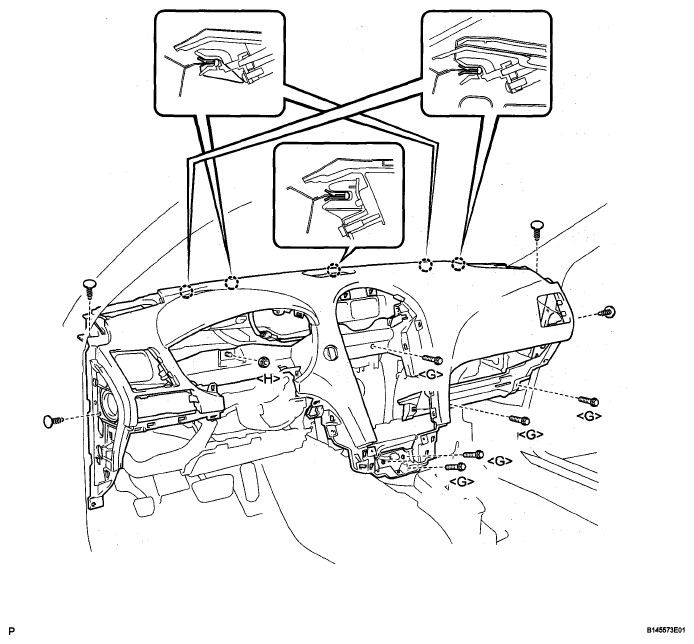

      Fig 3: Identifying Instrument Panel Safety Pad Assembly Claws
      G05253797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the clip.
    5. Install the bolt < L >.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    6. Engage each clamp.
    7. Install the 2 passenger airbag bolts < K >.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    8. Connect each connector and install the instrument panel safety pad assembly.

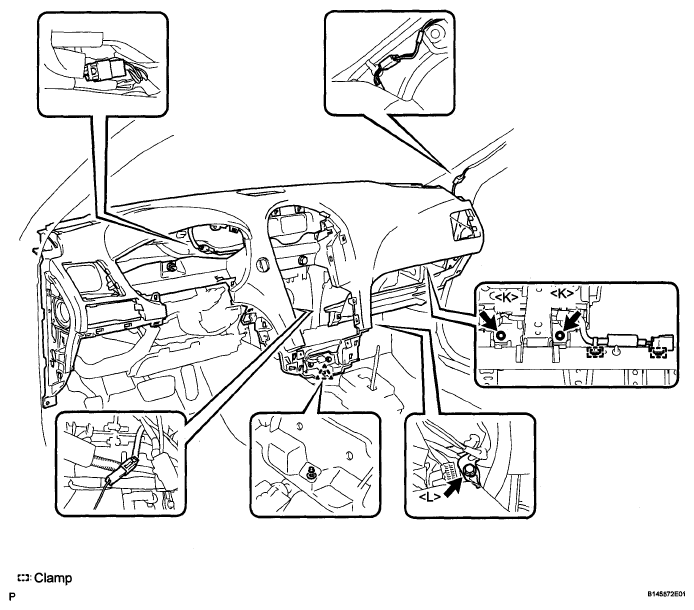

      Fig 4: Identifying Instrument Panel Safety Pad Assembly Connector And Passenger Airbag Bolts
      G05253796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (w/ DVD Player)
    1. Engage the 5 claws.
    2. Install the 4 clips.
    3. Install the 5 bolts < G > and nut < H >.
      Fig 5: Identifying Instrument Panel Safety Pad Assembly Claws
      G05253797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the clip.
    5. Install the bolt < L >.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    6. Engage each clamp.
    7. Install the 2 passenger airbag bolts < K >.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    8. Connect each connector and install the instrument panel safety pad assembly.

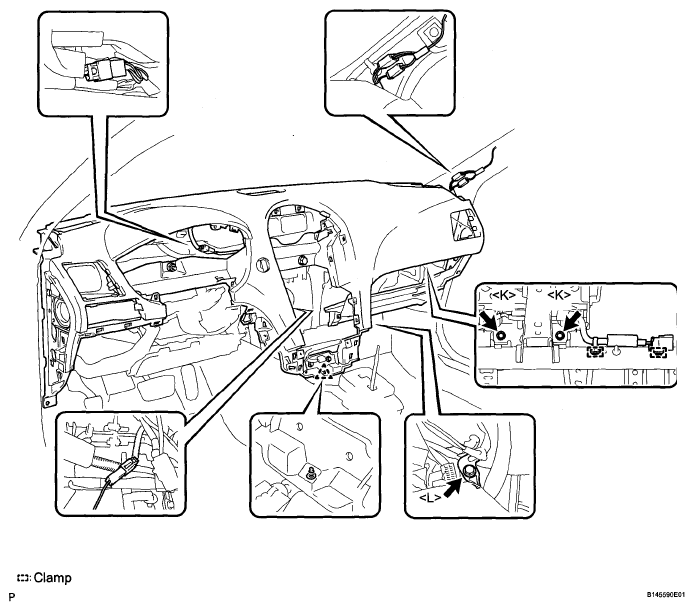

      Fig 6: Identifying Instrument Panel Safety Pad Assembly Connector And Passenger Airbag Bolts
      G05253798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ROOM TEMPERATURE SENSOR  (See INSTALLATION )
  6. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  7. INSTALL PUSH START SWITCH
    1. Connect the connector.
    2. Engage the 2 claws and install the push start switch.
      Fig 7: Identifying Push Start Switch Claws
      G05253795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 INSTRUMENT PANEL MOUNTING BRACKET
    1. Install the clip and the No. 1 instrument panel mounting bracket.
  9. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY  (See INSTALLATION )
    Fig 8: Identifying Instrument Panel Mounting Bracket Clip
    G05253794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 1 SPEAKER HOLE COVER
    1. Engage the 4 clips and install the No. 1 speaker hole cover.
      Fig 9: Identifying Speaker Hole Cover Clips
      G05253832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 4 clips and install the No. 1 instrument panel register assembly.
  12. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)  (See INSTALLATION )
    Fig 10: Identifying Instrument Panel Register Assembly Clips
    G05253833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 2 guides.
    2. Engage the 2 clips and install the No. 1 instrument panel speaker panel sub-assembly.
  14. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
    Fig 11: Identifying Instrument Panel Speaker Panel Guides And Clips
    G05253834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 4 clips and install the No. 3 instrument panel register assembly.
  16. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedures described for the LH side (See INSTALLATION ).

    Fig 12: Identifying Instrument Panel Register Assembly Clips
    G05253791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 2 guides.
    2. Engage the 2 clips and install the No. 2 instrument panel speaker panel sub-assembly.
  18. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
    Fig 13: Identifying Instrument Panel Speaker Panel Clips And Guides
    G05253836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL REAR CONSOLE BOX ASSEMBLY
    1. Connect each connector.
    2. Engage the 4 clips.
      Fig 14: Identifying Rear Console Box Assembly Clips
      G05253787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 screws < F >.
      Fig 15: Locating Rear Console Box Assembly Screws
      G05253784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 2 bolts < E >.
      Fig 16: Locating Rear Console Box Assembly Bolts
      G05253785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the rear console box assembly with the 2 bolts < E >.
      Fig 17: Locating Rear Console Box Assembly Bolts
      G05253786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Engage the 6 clips and install the console rear end panel sub-assembly.
      Fig 18: Identifying Console Rear End Panel Clips
      G05253783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL CONSOLE BOX CARPET
    1. Install the console box carpet.
      Fig 19: Identifying Console Box Carpet
      G05253782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL CONSOLE BOX POCKET
    1. Install the console box pocket.
      Fig 20: Identifying Console Box Pocket
      G05253781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)
    1. Engage the 4 clips and install the heater seat switch base.
  24. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)
    1. Connect each connector.
      Fig 21: Identifying Heater Seat Switch Base Clips
      G05253844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips and install the heater seat switch base.
  25. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  (See INSTALLATION )
  26. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  (See INSTALLATION )
    Fig 22: Identifying Heater Seat Switch Base Clips
    G05253845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector.
    2. Engage the 4 claws and 4 clips, and install the No. 2 instrument panel register assembly.
  28. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE
    1. Connect the connector.
      Fig 23: Identifying Instrument Panel Register Assembly Claws And Clips
      G05253846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 claws and 6 clips to install the upper console panel assembly with front ash receptacle.

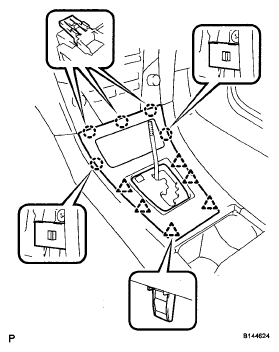

      Fig 24: Identifying Upper Console Panel Assembly Claws And Clips
      G05253774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Install the shift lever knob sub-assembly.
  30. INSTALL LOWER INSTRUMENT PANEL RH
    1. Connect each connector.
      Fig 25: Installing Shift Lever Knob Sub-Assembly
      G05253848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clips.
    3. Install the lower instrument panel RH with the 6 screws < D >.
  31. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
    Fig 26: Identifying Lower Instrument Panel Screws And Clips
    G05253772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL SIDE INSTRUMENT PANEL RH
    1. Apply protective tape to the area shown in the illustration.
    2. Engage the upper end of the side instrument panel RH with the lower end of the front pillar garnish RH as shown in the illustration.
      Fig 27: Identifying Protective Tape
      G05253850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

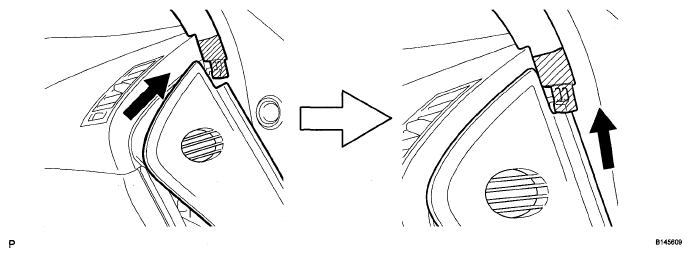

      Fig 28: Installing Side Instrument Panel RH
      G05253851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 guides and the 3 clips to install the side instrument panel RH.
  33. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connector.
      Fig 29: Identifying Side Instrument Panel Guides And Clips (RH)
      G05253771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 guides.
    3. Engage the 5 clips and install the No. 2 instrument panel under cover sub-assembly.
  34. INSTALL FRONT DOOR OPENING TRIM COVER RH  (See INSTALLATION )
  35. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
    Fig 30: Identifying Instrument Panel Under Cover Clips And Guides
    G05253770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
    1. Engage the claw and 4 clips to install the instrument panel finish panel end RH.
  37. INSTALL NO. 1 SWITCH HOLE BASE
    1. Connect each connector.
      Fig 31: Identifying Instrument Panel Finish Panel End Claw And Clips (RH)
      G05253769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips and install the No. 1 switch hole base.
  38. INSTALL COMBINATION METER ASSEMBLY
    1. Connect each connector.
      Fig 32: Identifying Switch Hole Base Clips
      G05253855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the combination meter assembly with the 4 screws < B > or < C >.
      Fig 33: Locating Combination Meter Assembly Screws
      G05253767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Engage the guide and the 4 claws.
    2. Engage the 2 clips.
    3. Install the instrument cluster finish panel sub-assembly with the screw < B >.
  40. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  41. INSTALL TILT AND TELESCOPIC SWITCH  (See INSTALLATION )

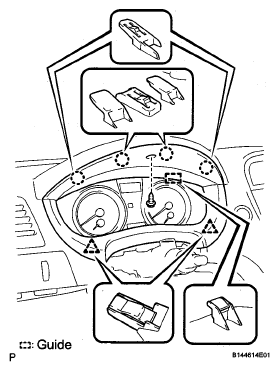

    Fig 34: Identifying Instrument Cluster Finish Panel Screw, Guide And Claws
    G05253766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL STEERING COLUMN COVER
    1. Engage the claw < A > and install the upper steering column cover.
    2. Engage the 2 claws < B > and install the lower steering column cover.
    3. Install the 2 screws < J >.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  43. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  44. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Connect each connector.
      Fig 35: Identifying Steering Column Cover Claws And Screws
      G05253765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 9 clips.
    3. Connect the hood lock control cable assembly.
    4. Install the lower instrument panel sub-assembly with the 2 bolts < A >.

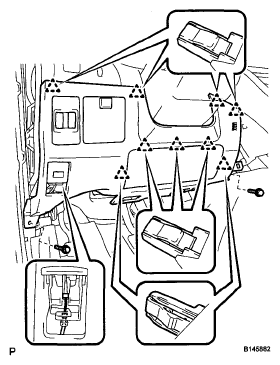

      Fig 36: Identifying Lower Instrument Panel Sub-Assembly Bolts
      G05253764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
    1. Engage the 3 clips and install the instrument panel finish panel end LH.
      Fig 37: Identifying Instrument Panel Finish Panel End Clips (LH)
      G05253763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL SIDE INSTRUMENT PANEL LH
    1. Apply protective tape to the area shown in the illustration.
    2. Engage the upper end of the side instrument panel LH with the lower end of the front pillar garnish LH as shown in the illustration.
      Fig 38: Identifying Protective Tape
      G05253861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

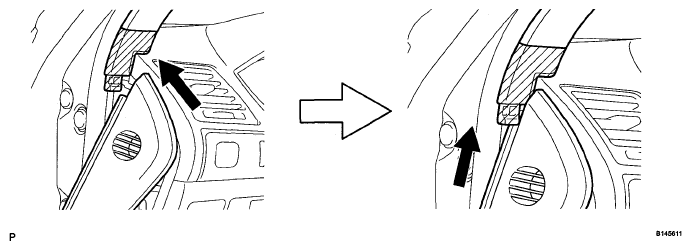

      Fig 39: Installing Side Instrument Panel LH
      G05253862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 guides and the 3 clips to install the side instrument panel LH.
  47. INSTALL FRONT DOOR OPENING TRIM COVER LH  (See INSTALLATION )
  48. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  49. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  50. INSTALL STEERING PAD  (See INSTALLATION )
  51. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
    Fig 40: Identifying Side Instrument Panel Guides And Clips
    G05253762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  53. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  54. INSPECT STEERING PAD  (See INSTALLATION )
  55. INSPECT FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See ON-VEHICLE INSPECTION )
  56. INSPECT SRS WARNING LIGHT  (See INSTALLATION )
  57. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).
scientia non olet · About LEMON Manuals
