Wiper and Washer without Auto Wiper System: Notes

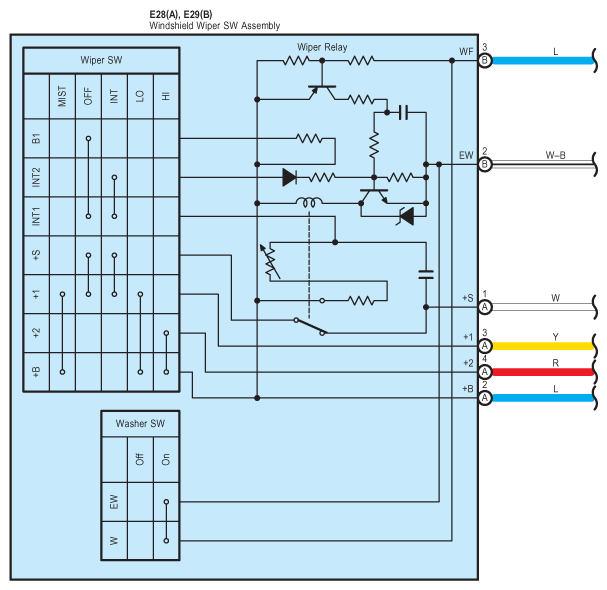

Fig 1: Wiper And Washer Without Auto Wiper System Wiring Diagram (1 Of 2)
G08916828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

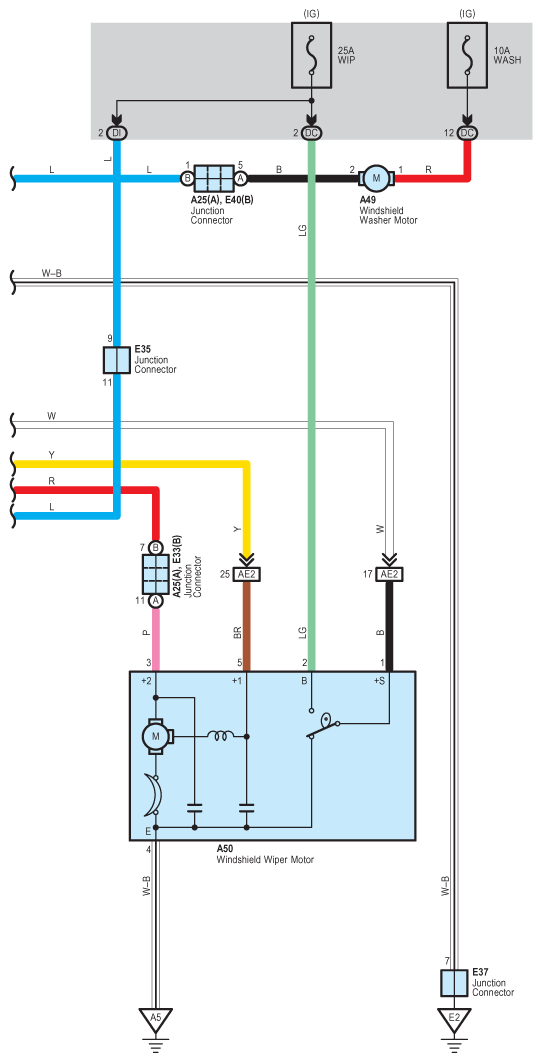

Fig 2: Wiper And Washer Without Auto Wiper System Wiring Diagram (2 Of 2)
G08916829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
