Rear Axle Hub And Bearing: Components

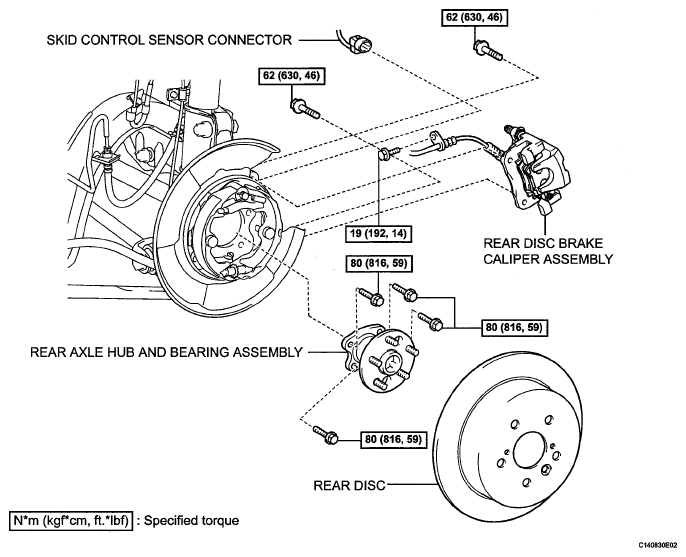

Fig 1: Rear Axle Hub And Bearing Replacement Components With Torque Specifications

G05250092

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
