Home >> Lexus >> 2007 >> ES 350 >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Seat Heater Control >> Components

Seat Heater Control: Components

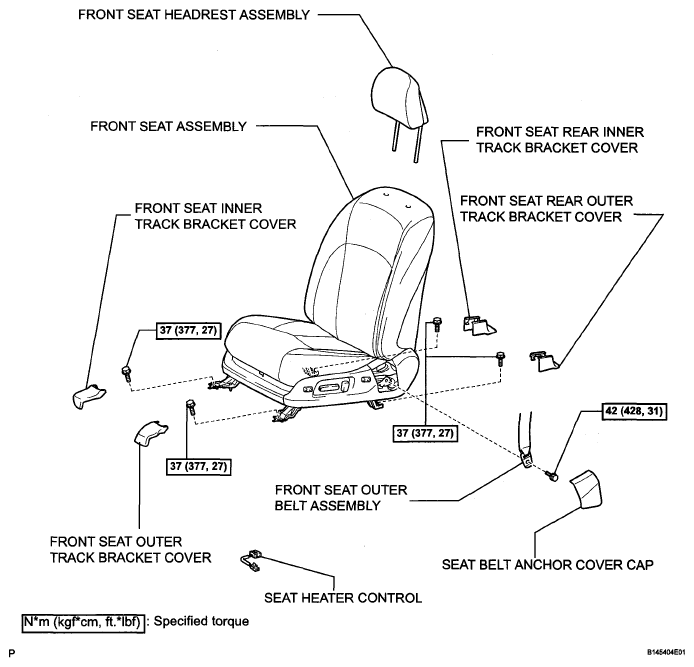

Fig 1: Seat Heater Control Replacement Components With Torque Specifications

G05254158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
