Front Seat Assembly: Disassembly

  1. REMOVE FRONT SEAT INNER BELT ASSEMBLY  (See INSPECTION )
  2. REMOVE OCCUPANT DETECTION ECU  (See INSTALLATION )
  3. REMOVE RECLINING POWER SEAT SWITCH KNOB
    1. Using a screwdriver, remove the reclining power seat switch knob.

      HINT:

      Tape the screwdriver tip before use.

      Fig 1: Removing Reclining Power Seat Switch Knob
      G05253967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. Using a screwdriver, remove the slide and vertical power seat switch knob.

      HINT:

      Tape the screwdriver tip before use.

      Fig 2: Removing Slide And Vertical Power Seat Switch Knob
      G05253968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY
    1. Release the 2 rubber bands on the backside of the front seatback board sub-assembly.
      Fig 3: Locating Rubber Bands
      G05253969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 8 screws.
    3. Disengage the 2 claws and separate the front seat cushion shield assembly.
      Fig 4: Identifying Screws And Front Seat Cushion Shield Assembly
      G05253970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 2 clamps and 2 connectors, and then remove the front seat cushion shield assembly.
      Fig 5: Identifying Clamps And Connectors
      G05253971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD
    1. Remove the 2 screws and front inner No. 1 seat cushion shield.
      Fig 6: Identifying Screws And Front Inner No. 1 Seat Cushion Shield
      G05253972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SEAT VARIABLE CUSHION SWITCH (w/ Seat Cushion Front Edge Adjustment Function)
    1. Remove the 2 screws and seat variable cushion switch.
      Fig 7: Identifying Screws And Seat Variable Cushion Switch
      G05253973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT POWER SEAT LUMBAR SWITCH
    1. Remove the 2 screws and front power seat lumbar switch.
      Fig 8: Identifying Screws And Front Power Seat Lumbar Switch
      G05253974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE LOWER NO. 3 SEAT TRACK SPACER
    1. Remove the 2 screws and lower No. 3 seat track spacer.
      Fig 9: Identifying Screws And Lower No. 3 Seat Track Spacer
      G05253975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT POWER SEAT SWITCH (w/ Seat Position Memory System)
    1. Disconnect the 2 connectors.
    2. Remove the 3 screws and front power seat switch.
    Fig 10: Locating Connector
    G05253976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT POWER SEAT SWITCH (w/o Seat Position Memory System)
    1. Disconnect the connector.
    2. Remove the 3 screws and power seat switch.
  12. REMOVE FRONT SEAT INNER CUSHION SHIELD
    1. Remove the screw.
    2. Disengage the 2 claws and clip, and then remove the front seat inner cushion shield.
      Fig 11: Identifying Claws And Clip
      G05253977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE LOWER NO. 4 SEAT TRACK SPACER
    1. Remove the 2 screws and lower No. 4 seat track spacer.
      Fig 12: Identifying Screws And Lower No. 4 Seat Track Spacer
      G05253978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER WITH PAD (w/o Seat Cushion Front Edge Adjustment Function)
    1. Disconnect the 2 connectors.
    2. Disengage the 4 clamps and claw.
      Fig 13: Locating Connectors
      G05253979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector and detach the 2 clamps.
      Fig 14: Locating Connector
      G05253980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 4 clamps.
      Fig 15: Locating Clamps
      G05253981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, detach the hook.
      Fig 16: Detaching Hook
      G05253982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 clips.
    7. Disengage the hooks and remove the front separate type seat cushion cover with pad.

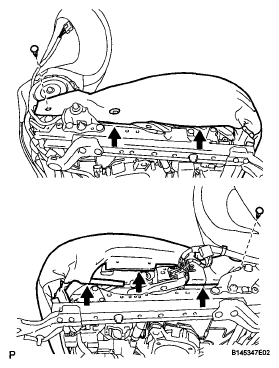

      Fig 17: Locating Hooks And Front Separate Type Seat Cushion Cover With Pad
      G05253983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER WITH PAD (w/ Seat Cushion Front Edge Adjustment Function)
    1. Disconnect the 2 connectors.
    2. Disengage the 4 clamps and claw.
      Fig 18: Locating Connectors
      G05253979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector and detach the 2 clamps.
      Fig 19: Locating Connector
      G05253980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 4 clamps.
      Fig 20: Locating Clamps
      G05253981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, detach the hook.
      Fig 21: Detaching Hook
      G05253987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 clips.
    7. Disengage the hooks and clamp.

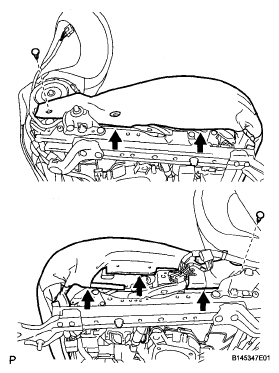

      Fig 22: Locating Hooks And Clamp
      G05253988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Disengage the 2 hooks and remove the front separate type seat cushion cover with pad.
      Fig 23: Locating Hooks And Front Separate Type Seat Cushion Cover With Pad
      G05253989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT SEAT CUSHION ASSEMBLY  (See INSPECTION )
  17. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER (w/o Seat Cushion Front Edge Adjustment Function)
    1. Remove the 3 hog rings.
      Fig 24: Identifying Hog Rings
      G05253990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 18 hog rings and front separate type front seat cushion cover.
      Fig 25: Identifying Hog Rings
      G05253991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER (w/ Seat Cushion Front Edge Adjustment Function)
    1. Remove the 3 hog rings.
      Fig 26: Identifying Hog Rings
      G05253990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 14 hog rings and front separate type front seat cushion cover.
      Fig 27: Identifying Hog Rings
      G05253993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Climate Control Seat System)
    1. Cut off the tack pins that fasten the seat heater, and then remove the front seat cushion heater from the front separate type seat cushion cover.
      Fig 28: Identifying Tack Pins
      G05253994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY
    1. Open the front seatback board cover sub-assembly of the front seatback board sub-assembly. Then remove the 2 screws.
    2. Pull the seatback board in the direction indicated by the arrow in the illustration to disengage the 2 claws. Then remove the front seatback board sub-assembly.
      Fig 29: Pulling Seatback Board
      G05253995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT SEATBACK BOARD COVER SUB-ASSEMBLY
    1. Disengage the hooks and front seatback board cover sub-assembly.
      Fig 30: Identifying Hooks And Front Seatback Board Cover Sub-Assembly
      G05253996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FRONT SEAT HEADREST SUPPORT
    1. Disengage the 2 claws to remove the front seat headrest support.
    Fig 31: Identifying Claws And Front Seat Headrest Support
    G05253997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT SEAT HEADREST SUPPORT
  24. REMOVE FRONT SEPARATE TYPE SEATBACK COVER WITH PAD
    1. Disengage the hooks.
      Fig 32: Locating Hooks
      G05253998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and separate the bracket.
    3. Remove the front separate type seatback cover with pad.
      Fig 33: Identifying Nut And Bracket
      G05253999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FRONT SEPARATE TYPE SEATBACK COVER
    1. Remove the 8 hog rings and the front separate type seatback cover.
      Fig 34: Identifying Hog Rings
      G05254000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FRONT SEATBACK HEATER ASSEMBLY (w/ Climate Control Seat System)
    1. Cut off the tack pins that fasten the seat heater, and then remove the front seatback heater assembly from the separate type front seatback cover.
      Fig 35: Identifying Tack Pins
      G05254001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE SEAT RECLINING ADJUSTER INSIDE COVER LH
    1. Remove the 2 screws.
    2. Disengage the clamp.
    3. Disengage the claw and remove the seat reclining adjuster inside cover LH.
    Fig 36: Identifying Claw And Seat Reclining Adjuster Inside Cover LH
    G05254002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE SEAT RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  29. REMOVE RECLINING ADJUSTER INSIDE COVER LH
    1. Remove the screw.
    2. Remove the reclining adjuster inside cover LH.
    Fig 37: Identifying Reclining Adjuster Inside Cover LH
    G05254003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  31. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH
    1. Remove the screw.
    2. Disengage the hook to remove the front seat lower cushion shield LH as shown in the illustration.
    Fig 38: Identifying Front Seat Lower Cushion Shield LH
    G05254004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  33. REMOVE SEAT POSITION SENSOR (for Driver Side)  (See INSTALLATION )
  34. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 2 screws and lumbar support adjuster assembly.
      Fig 39: Identifying Screws And Lumbar Support Adjuster Assembly
      G05254005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
    1. Disconnect the connector and detach the 4 clamps.
      Fig 40: Locating Connector
      G05254006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T30 "TORX" socket, remove the 6 "TORX" bolts and remove the seatback climate control blower.
      Fig 41: Identifying Bolts And Seatback Climate Control Blower
      G05254007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE SEAT CUSHION CLIMATE CONTROL DUCT (w/ Climate Control Seat System)
    1. Separate the 2 clamps (A) in the direction indicated by the arrow (1).
    2. Separate the 2 clamps (B) in the direction indicated by the arrow (2).
    3. Disengage the 2 claws, and remove the seat cushion climate control duct.
      Fig 42: Removing Claws And Seat Cushion Climate Control Duct LH
      G05254008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE SEAT CUSHION CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
    1. Disconnect the connector.
    2. Remove the screw, detach the claw and remove the seat cushion climate control blower.
      Fig 43: Removing Seat Cushion Climate Control Blower
      G05254009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE SEAT CLIMATE CONTROL BLOWER
    1. Remove the 3 bolts, 3 nuts, bracket, and seat climate control blower.
    Fig 44: Identifying Bolts, Nuts, Bracket And Seat Climate Control Blower
    G05254010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE SEAT HEATER CONTROL (See  REMOVAL   )
  40. REMOVE FRONT SEAT WIRE
    1. Disengage the clamps.
    2. Disconnect the connectors and remove the front seat wire.
