Rear Sunshade Assembly: Components

Fig 1: Rear Sunshade Replacement Components With Torque Specifications (1 Of 3)
G05251828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

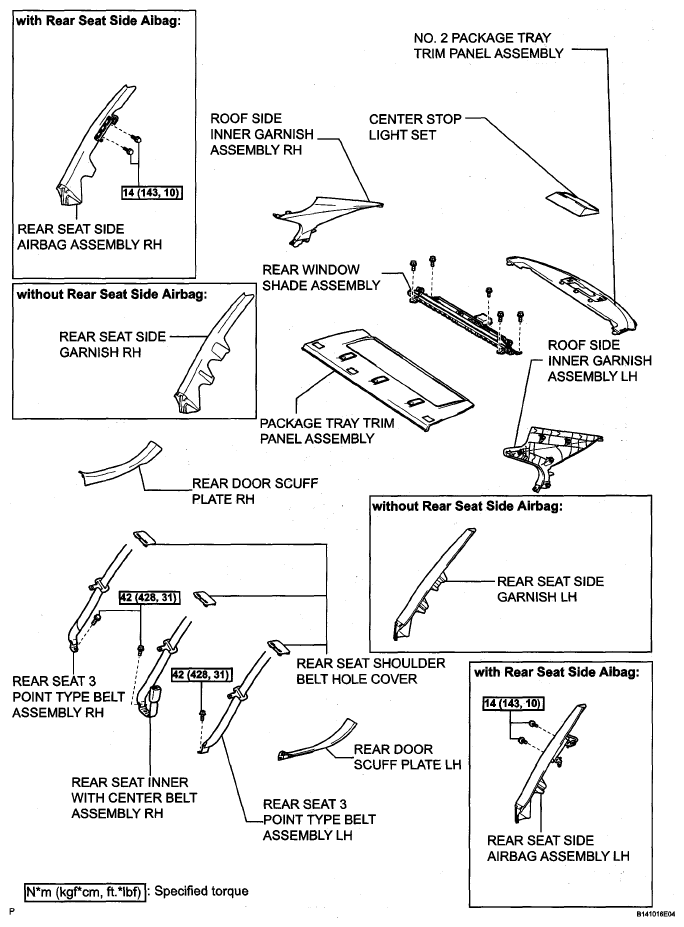

Fig 2: Rear Sunshade Replacement Components With Torque Specifications (2 Of 3)
G05254632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

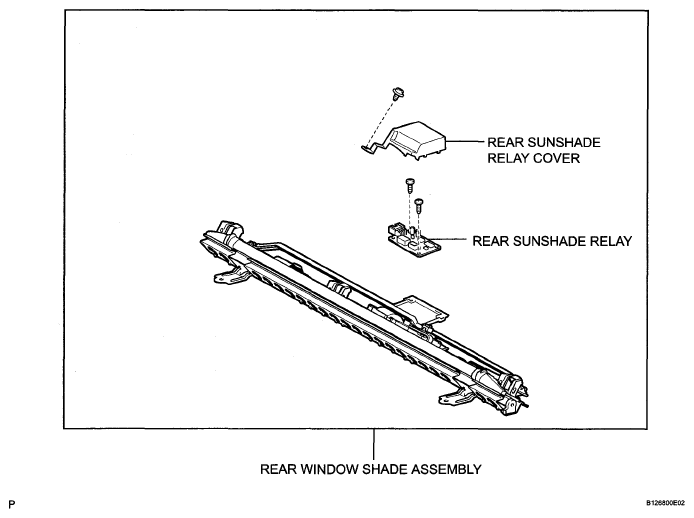

Fig 3: Identifying Rear Sunshade Components (3 Of 3)
G05254633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
