Rocker Panel Molding: Removal

REMOVE ROCKER PANEL MOLDING PROTECTOR
1. Remove the 2 screws and rocker panel molding protector.

  Fig 1: Identifying Screw And No. 2 Rear Floor Housing Shield
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DOOR WEATHERSTRIP
1. Disengage the 12 claws and remove the front door weatherstrip.
Fig 2: Identifying Front Door Weatherstrip Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROCKER PANEL MOLDING SUB-ASSEMBLY
1. Put protective tape around the rocker panel molding.

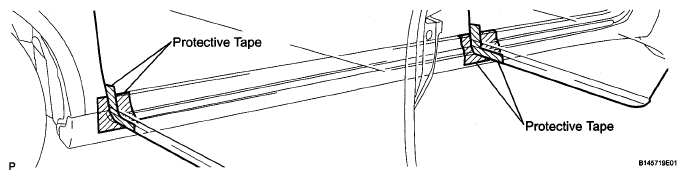

  Fig 3: Putting Protective Tape Around Rocker Panel Molding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw (A).
3. Using a 4 mm hexagon wrench, remove the screw (B).

  Fig 4: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a 4 mm hexagon wrench, remove the screw.

  Fig 5: Identifying Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 8 clips.

  Fig 6: Identifying Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 screws.

  Fig 7: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Disengage the 10 clips and remove the rocker panel molding sub-assembly.
REMOVE REAR ROCKER PANEL MOLDING
1. Remove the 4 clips.

  Fig 9: Locating Rear Rocker Panel Molding Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 3 guides and remove the rear rocker panel molding.
REMOVE LOWER ROCKER PANEL MOLDING
1. Remove the 6 clips.

  Fig 10: Locating Lower Rocker Panel Molding Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 5 guides and remove the lower rocker panel molding.
REMOVE ROCKER PANEL MOLDING
