Rocker Panel Molding: Installation

INSTALL ROCKER PANEL MOLDING
1. Check if the 2 clip installation portions are folded down and attached securely with the double-sided tape as shown in the illustration.

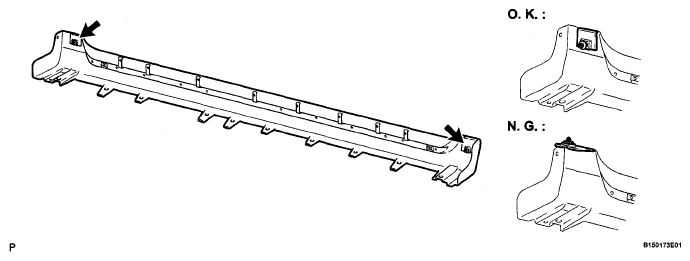

  Fig 1: Identifying Rocker Panel Molding Clip Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If any of the clip installation portions are not attached securely, replace the double-sided tape by following the procedures below:
  1. Remove the double-sided tape from the rocker panel molding.

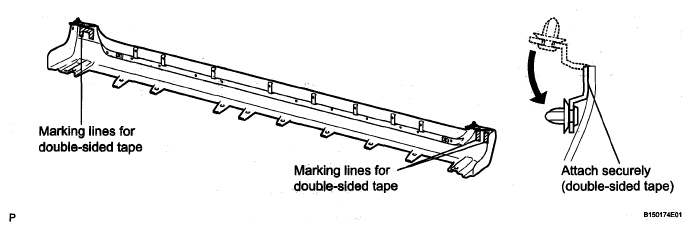

    Fig 2: Removing Double-Sided Tape From Rocker Panel Molding
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Wipe off any tape adhesive residue with cleaner.
  3. Align new double-sided tape to the marking lines on the rocker panel molding and attach it.
  4. Fold down the clip installation portions and attach them securely.
INSTALL LOWER ROCKER PANEL MOLDING
1. Engage the 5 guides and install the lower rocker panel molding.

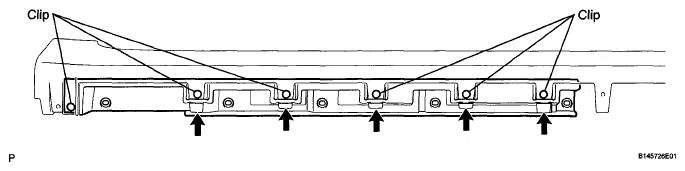

  Fig 3: Locating Lower Rocker Panel Molding Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 6 clips.
INSTALL REAR ROCKER PANEL MOLDING
1. Engage the 3 guides and install the rear rocker panel molding.

  Fig 4: Locating Rear Rocker Panel Molding Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 4 clips.
INSTALL ROCKER PANEL MOLDING SUB-ASSEMBLY
1. Engage the 10 clips and install the rocker panel molding sub-assembly.

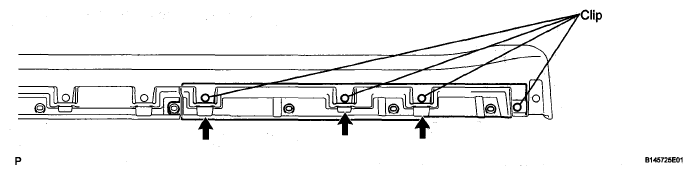

  Fig 5: Identifying Rocker Panel Molding Sub-Assembly Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 screws.

  Fig 6: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 8 clips.

  Fig 7: Identifying Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the screw (A).
5. Using a 4 mm hexagon wrench, install the screw (B).

  Fig 8: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a 4 mm hexagon wrench, install the screw.

  Fig 9: Identifying Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR WEATHERSTRIP
1. Engage the 12 claws and install the front door weatherstrip.

  Fig 10: Identifying Front Door Weatherstrip Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROCKER PANEL MOLDING PROTECTOR
1. Install the rocker panel molding protector with the 2 screws.

  Fig 11: Identifying Rocker Panel Molding Protector With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
