Home >> Lexus >> 2007 >> ES 350 >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Rear Door Window Frame Molding >> Components

Rear Door Window Frame Molding: Components

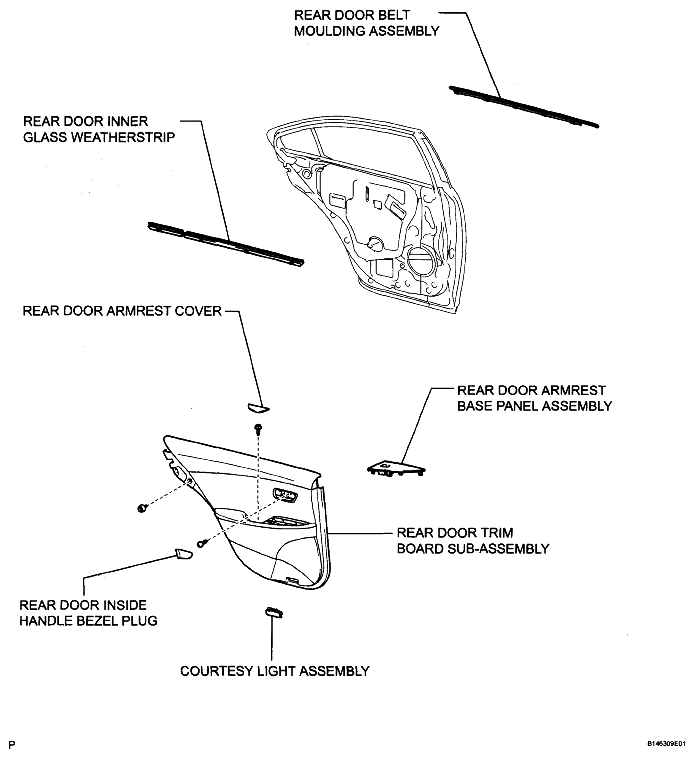

Fig 1: Identifying Rear Door Window Frame Molding Components (1 Of 2)
G05254583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

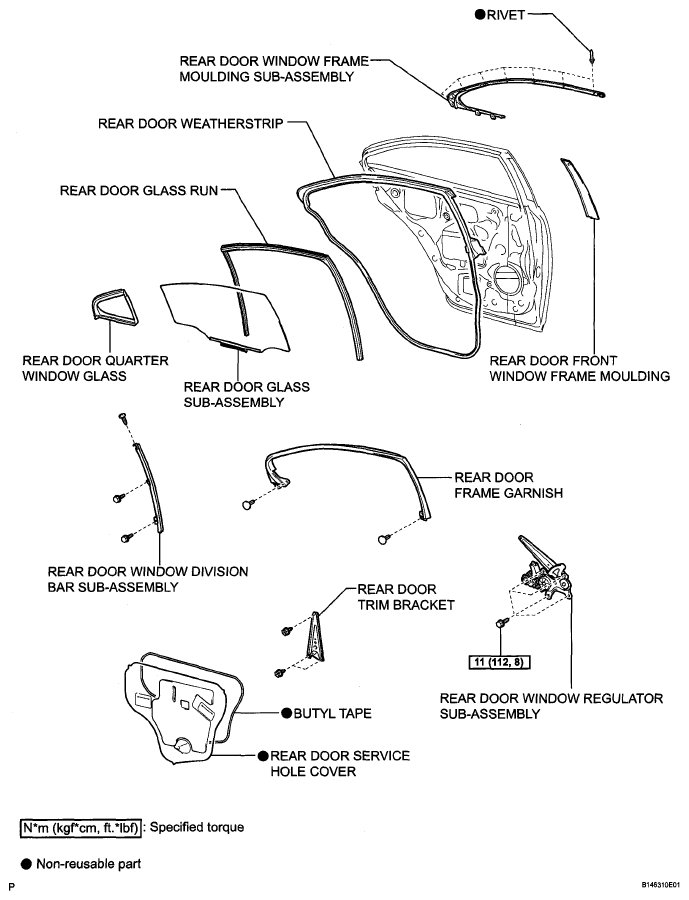

Fig 2: Rear Door Window Frame Molding Replacement Components With Torque Specifications (2 Of 2)
G05254584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
