Front Door Window Frame Molding: Components

Fig 1: Identifying Front Door Window Frame Molding Components (1 Of 2)
G05254518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

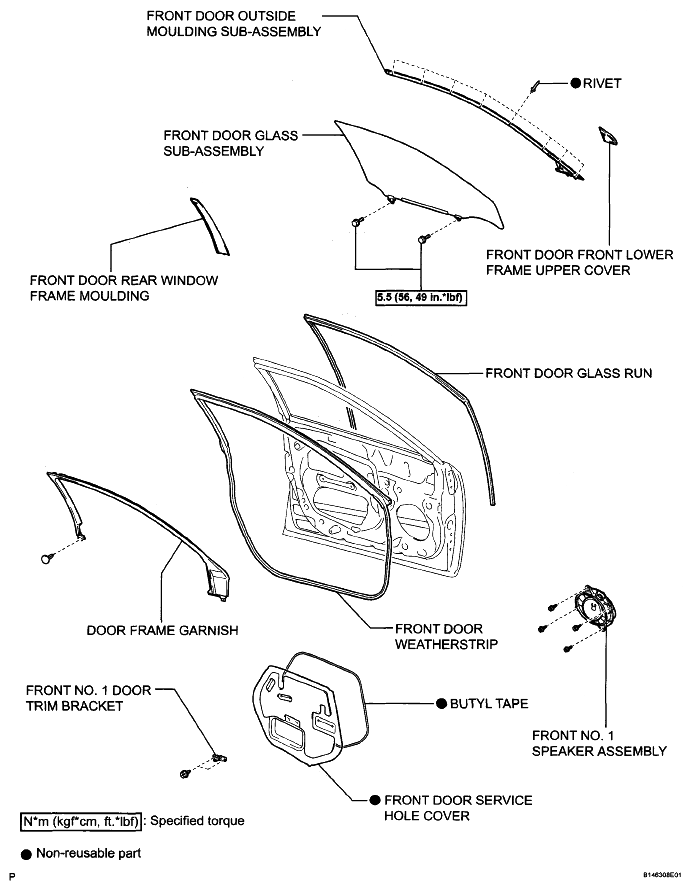

Fig 2: Front Door Window Frame Molding Replacement Components With Torque Specifications (2 Of 2)
G05254567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
