Parts Location

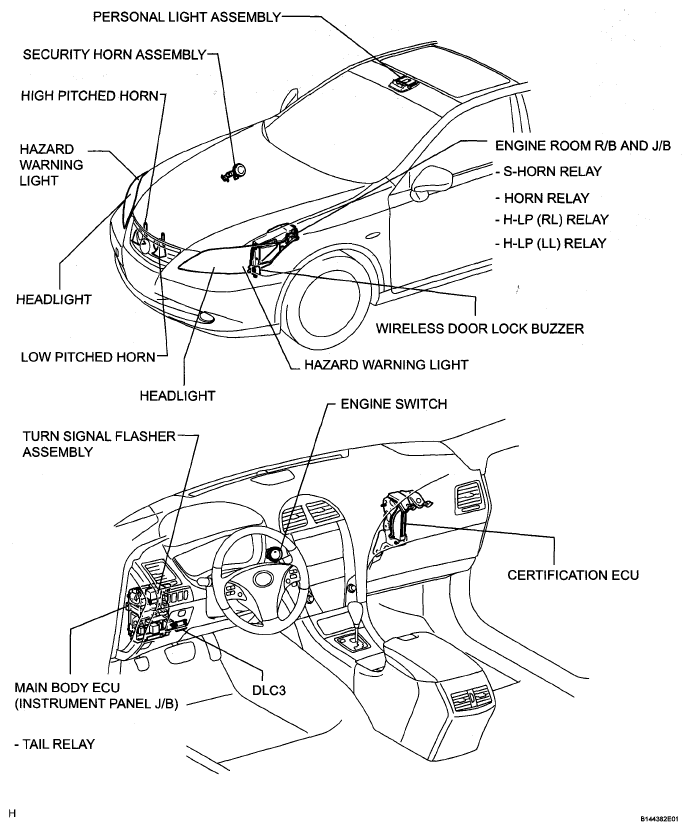

Fig 1: Identifying Wireless Door Lock Control System Components (1 Of 3)
G05252703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

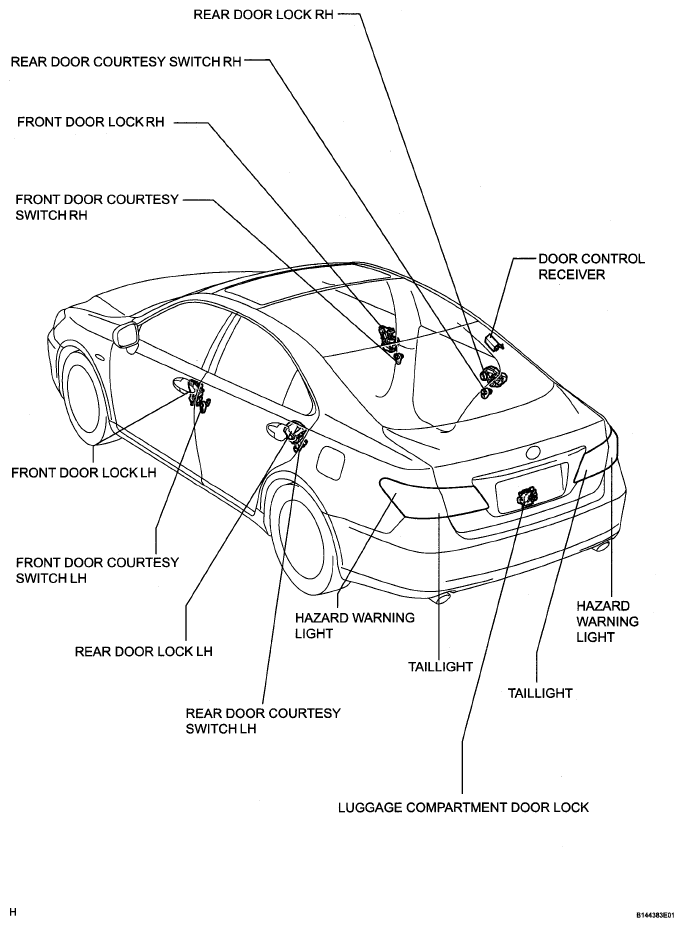

Fig 2: Identifying Wireless Door Lock Control System Components (2 Of 3)
G05252704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

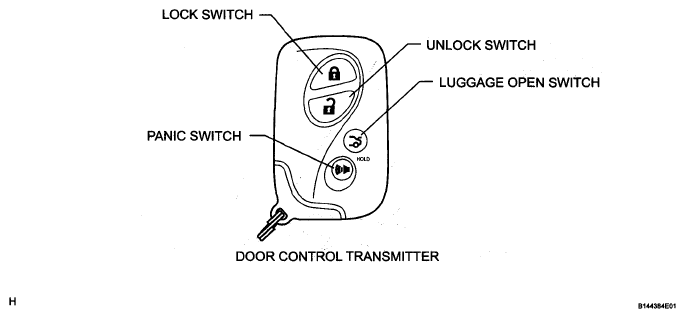

Fig 3: Identifying Wireless Door Lock Control System Components (3 Of 3)
G05252705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
