Luggage Compartment Door Open Switch Circuit: Wiring Diagram

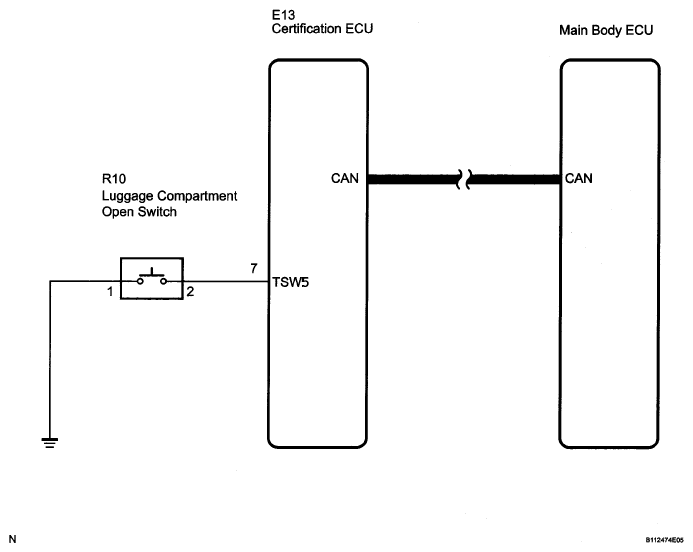

Fig 1: Luggage Compartment Door Open Switch Circuit - Wiring Diagram

G05252769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
