Rear Door Lock: Inspection

  1. INSPECT REAR DOOR LOCK LH ASSEMBLY
    1. Remove the rear door lock assembly LH.
    2. Check operation of the door lock motor.
      1. Apply battery voltage and check operation of the door lock motor.

        OK

        MEASUREMENT CONDITION SPECIFIED CONDITION

        Measurement Condition Specified Condition
        Battery positive (+) → Terminal 4
        Battery negative (-) → Terminal 1        		 Lock
        Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 4        		 Unlock

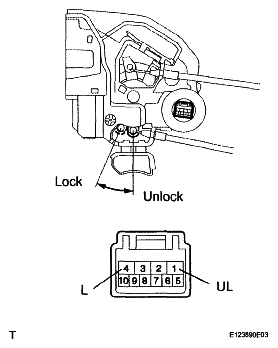

        Fig 1: Checking Operation Of Door Lock Motor
        G04980317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check operation of the unlock detection switch.
      1. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connection Measurement Condition Door Lock Condition (Specified Condition)
        6 - 9 Battery positive (+) → Terminal 4
        Battery negative (-) → Terminal 1        		 Lock 10 kΩ or higher
        6-9 Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 4        		 Unlock Below 1 Ω
        Fig 2: Checking Operation Of Unlock Detection Switch
        G04980304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT REAR DOOR LOCK RH ASSEMBLY
    1. Remove the rear door lock assembly RH.
    2. Check operation of the door lock motor.
      1. Apply battery voltage and check operation of the door lock motor.

        OK

        MEASUREMENT CONDITION SPECIFIED CONDITION

        Measurement Condition Specified Condition
        Battery positive (+) → Terminal 4
        Battery negative (-) → Terminal 1        		 Lock
        Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 4        		 Unlock

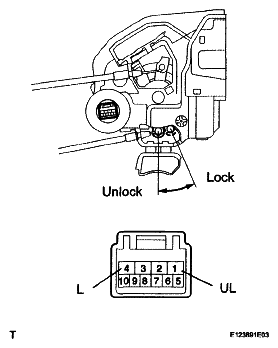

        Fig 3: Checking Operation Of Door Lock Motor
        G04980320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check operation of the unlock detection switch.
      1. Measure the resistance according to the value(s) in the table below.

        Standard resistance

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connection Measurement Condition Door Lock Condition (Specified Condition)
        6 - 9 Battery positive (+) → Terminal 4
        Battery negative (-) → Terminal 1        		 Lock 10 kΩ or higher
        6 - 9 Battery positive (+) → Terminal 1
        Battery negative (-) → Terminal 4        		 Unlock Below 1 Ω
        Fig 4: Checking Operation Of Unlock Detection Switch
        G04980308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
