Rear Door Lock: Components

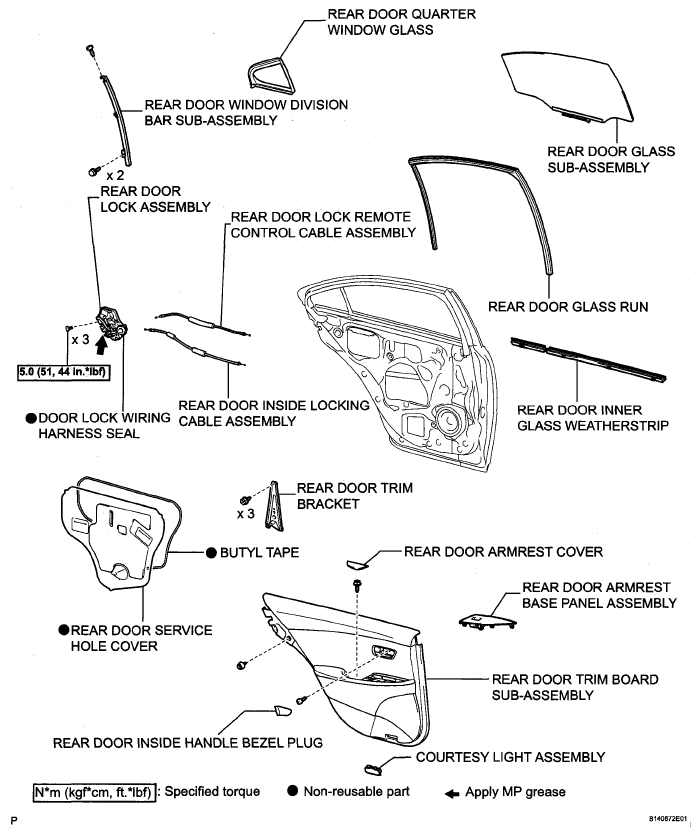

Fig 1: Rear Door Lock Replacement Components With Torque Specifications

G05252803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
