Parts Location

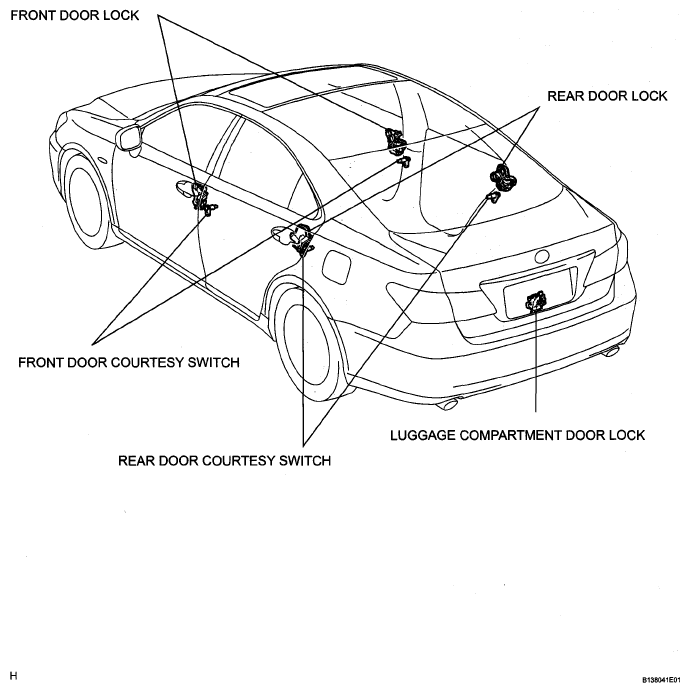

Fig 1: Identifying Power Door Lock Control System Components (1 Of 3)
G05252656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

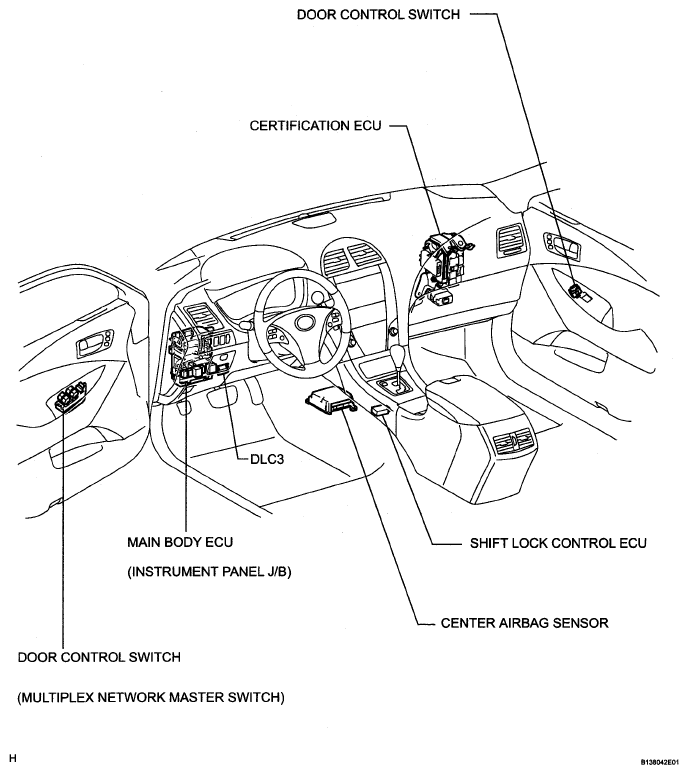

Fig 2: Identifying Power Door Lock Control System Components (2 Of 3)
G05252657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Power Door Lock Control System Components (3 Of 3)
G05252658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
