Inspection Procedure

1. Connect the negative (-) terminal cable to the battery, and wait for at least 90 seconds.

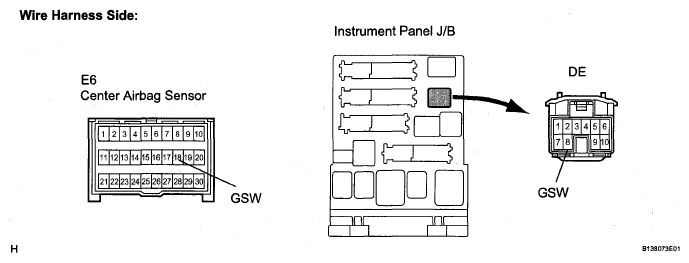

   Fig 1: Checking Harness And Connector (Center Airbag Sensor - Main Body ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the center airbag sensor E6 and J/B DE connectors.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection (Symbols)	Condition	Specified Condition
   E6-18 (GSW) - DE-8 (GSW)	Always	Below 1 Ω
   DE-8 (GSW) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Reconnect the center airbag sensor E6 and J/B DE connectors.
2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection (Symbols)	Condition	Specified Condition
   DE-8 (GSW) - Body ground	Engine switch on (IG)	4.5 to 5.5 V

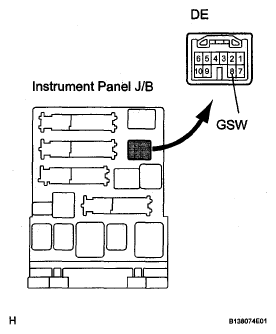

Fig 2: Inspecting Main Body ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAIN BODY ECU

OK: REPLACE CENTER AIRBAG SENSOR
