Ultrasonic Sensor: Components

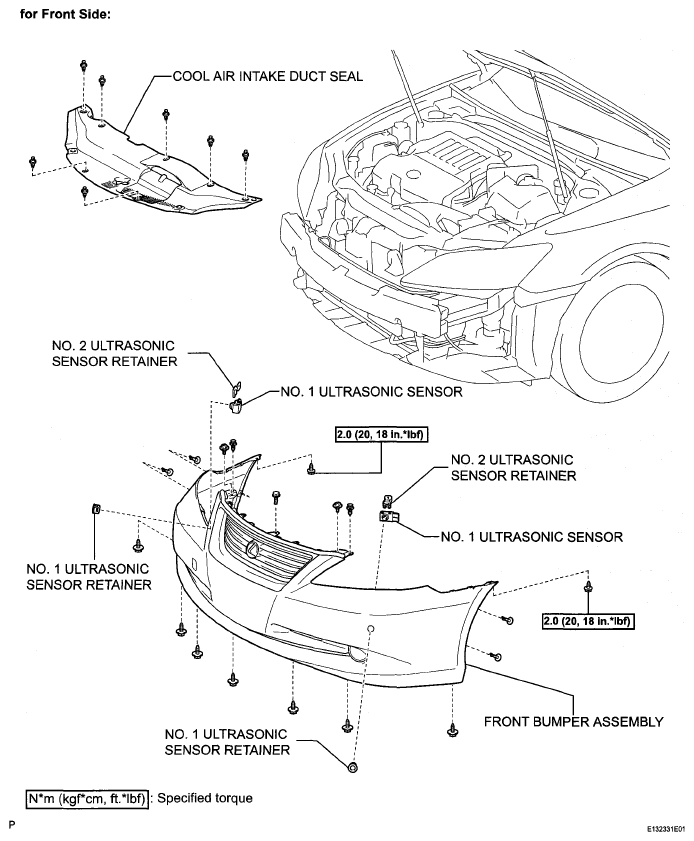

Fig 1: Ultrasonic Sensor Replacement Components With Torque Specifications (1 Of 3)
G05253474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Ultrasonic Sensor Components (2 Of 3)
G05253475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

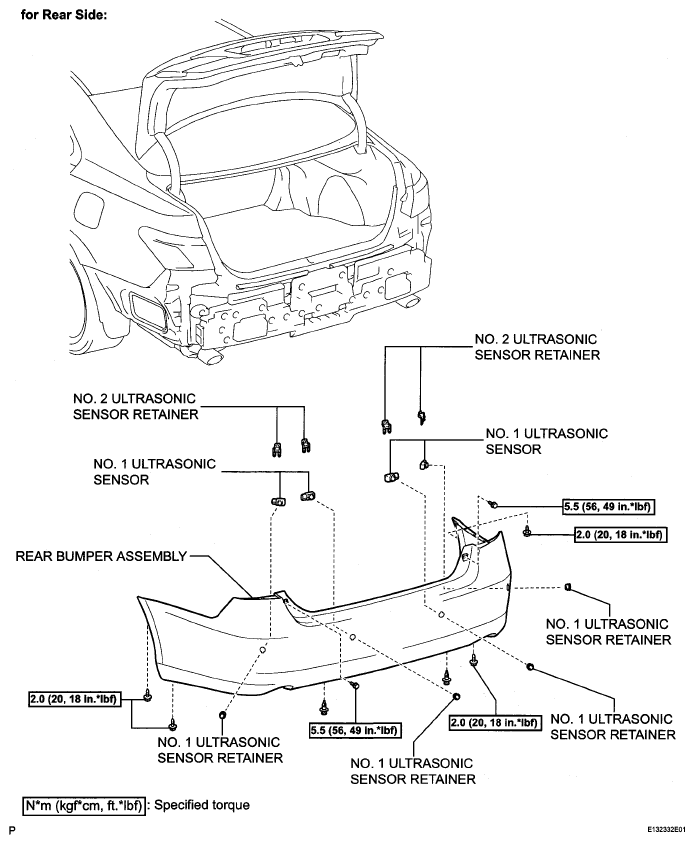

Fig 3: Ultrasonic Sensor Replacement Components With Torque Specifications (3 Of 3)
G05253476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
