Parts Location

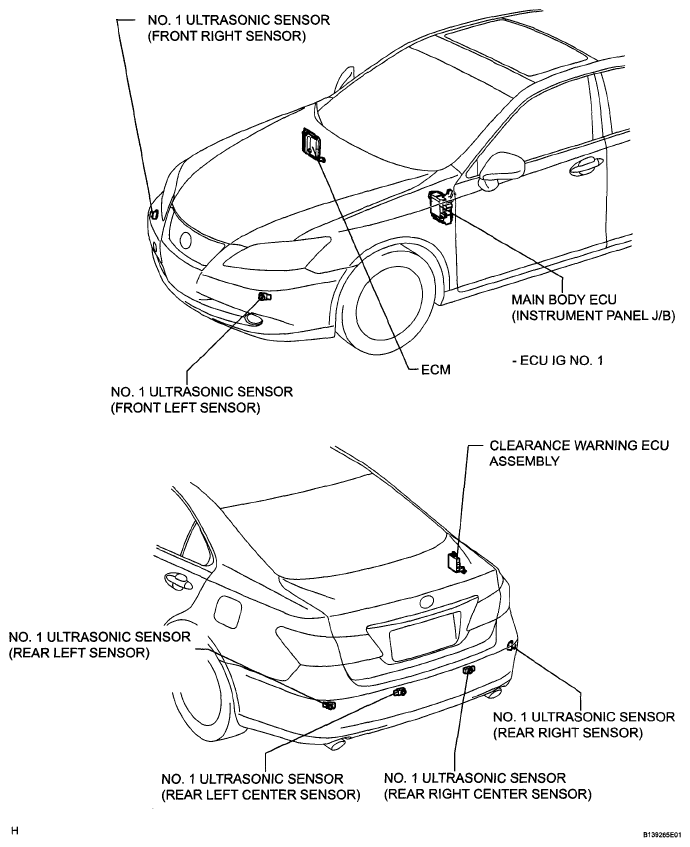

Fig 1: Identifying Intuitive Parking Assist System Part Location (1 Of 2)
G05253379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

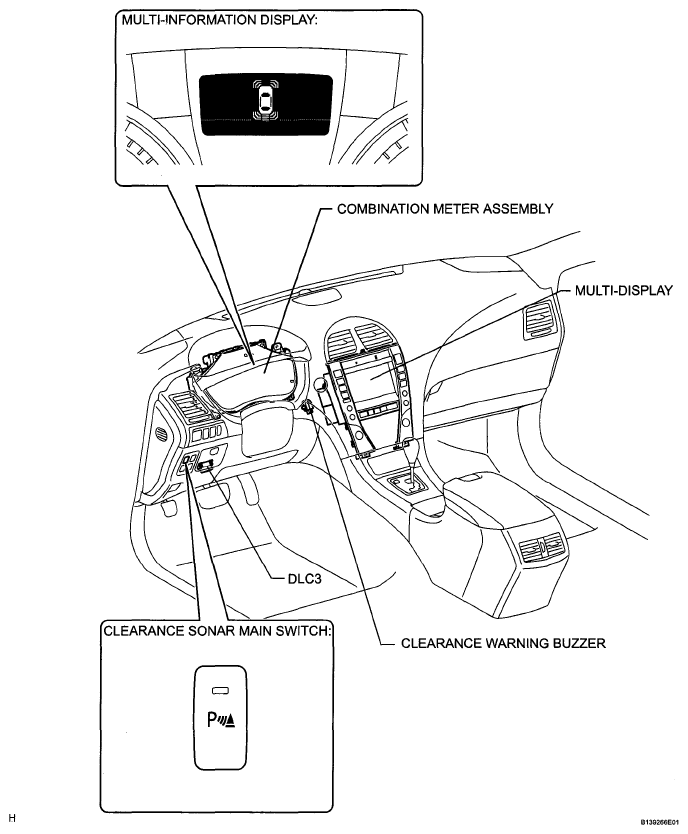

Fig 2: Identifying Intuitive Parking Assist System Part Location (2 Of 2)
G05253380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
