Vehicle Speed Signal Circuit between Multi-display and Combination Meter: Wiring Diagram

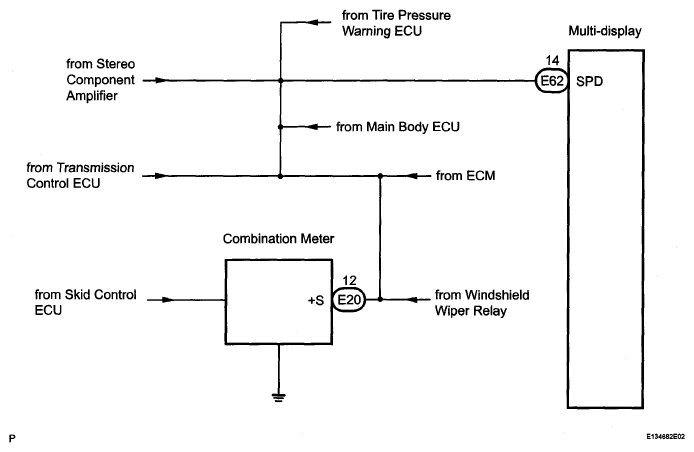

Fig 1: Vehicle Speed Signal Circuit Between Multi-Display And Combination Meter - Wiring Diagram
G05253307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
