Microphone Circuit between Overhead Junction Block and Multi-display: Wiring Diagram

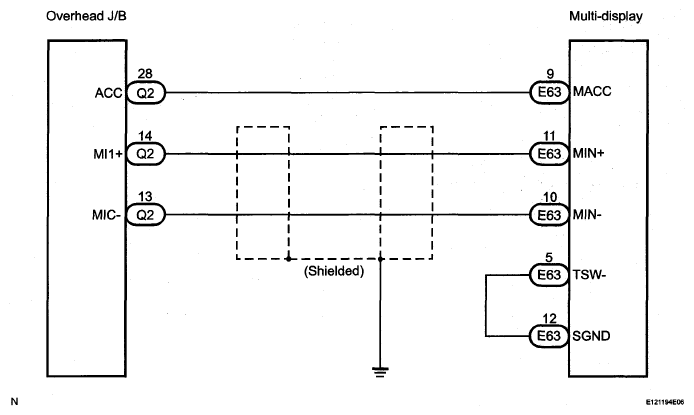

Fig 1: Microphone Circuit Between Overhead J/B And Multi-Display - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
