Microphone Circuit between Multi-display and Navigation ECU: Wiring Diagram

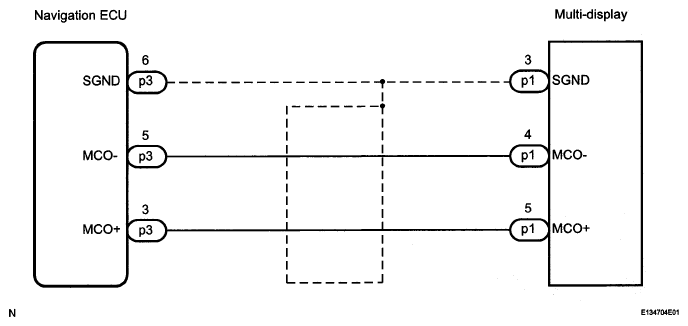

Fig 1: Microphone Circuit Between Multi-Display And Navigation ECU - Wiring Diagram
G05253329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
