DTC 5C-40 Camera Picture Error: Wiring Diagram

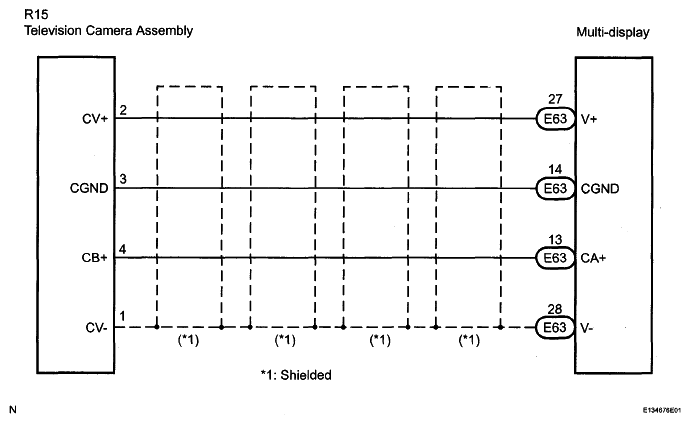

Fig 1: Camera Picture Error - Wiring Diagram

G05253226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
