Fog Light Assembly: Components

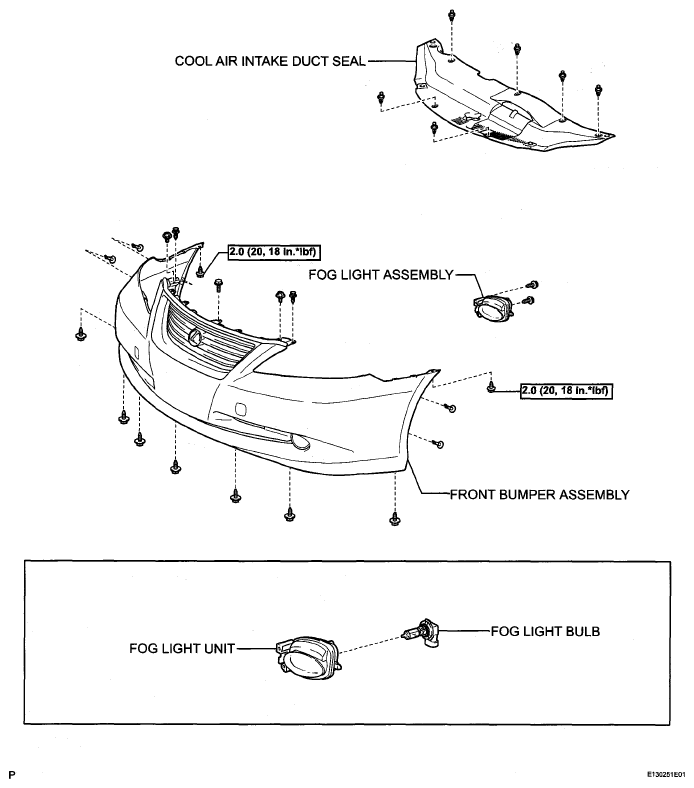

Fig 1: Fog Light Assembly Replacement Components With Torque Specifications

G05252415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
