Parts Location

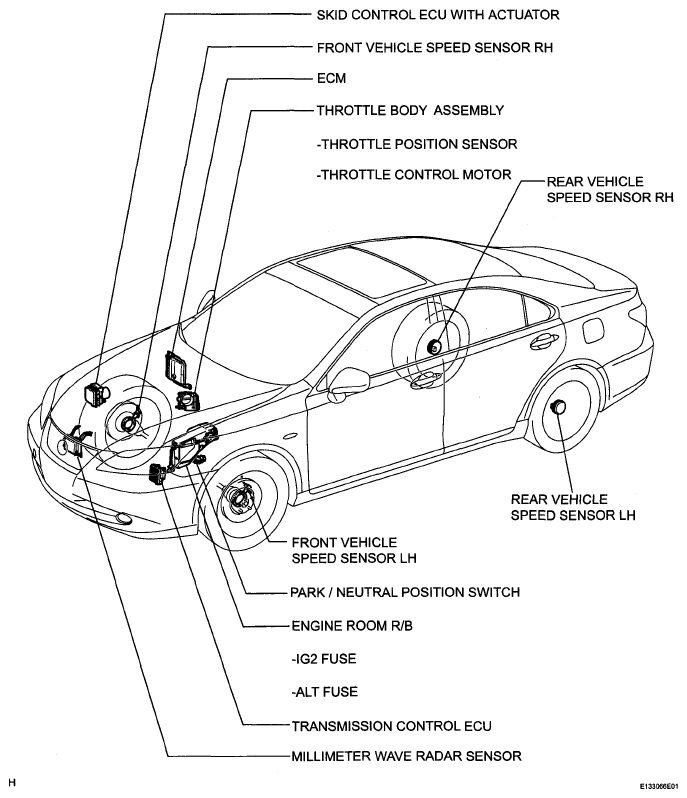

Fig 1: Identifying Dynamic Radar Cruise Control System Components Location (1 Of 4)
G05252168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

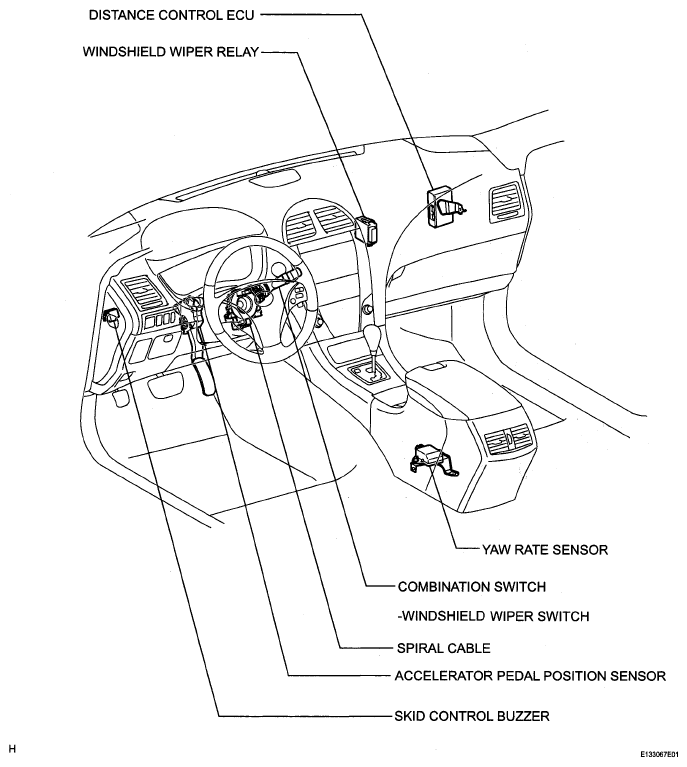

Fig 2: Identifying Dynamic Radar Cruise Control System Components Location (2 Of 4)
G05252169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

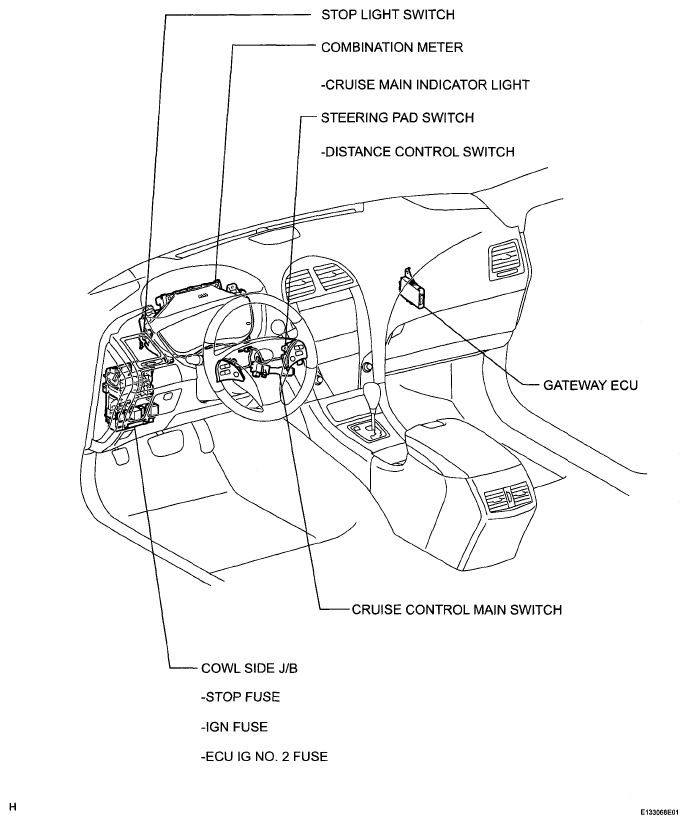

Fig 3: Identifying Dynamic Radar Cruise Control System Components Location (3 Of 4)
G05252170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Dynamic Radar Cruise Control System Components Location (4 Of 4)
G05252171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
