Parts Location

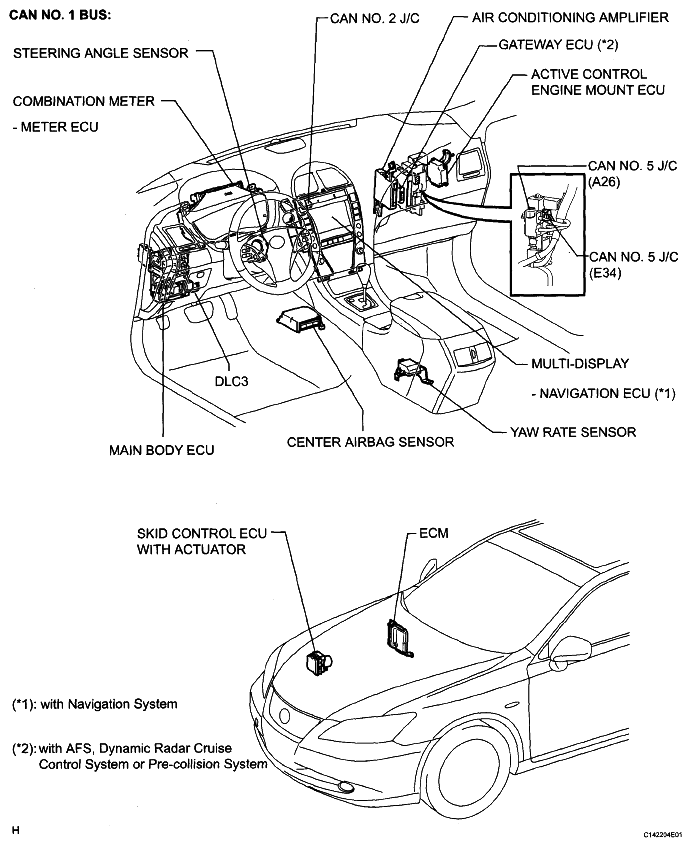

Fig 1: Identifying CAN Communication System Components Location (1 Of 3)
G05254826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

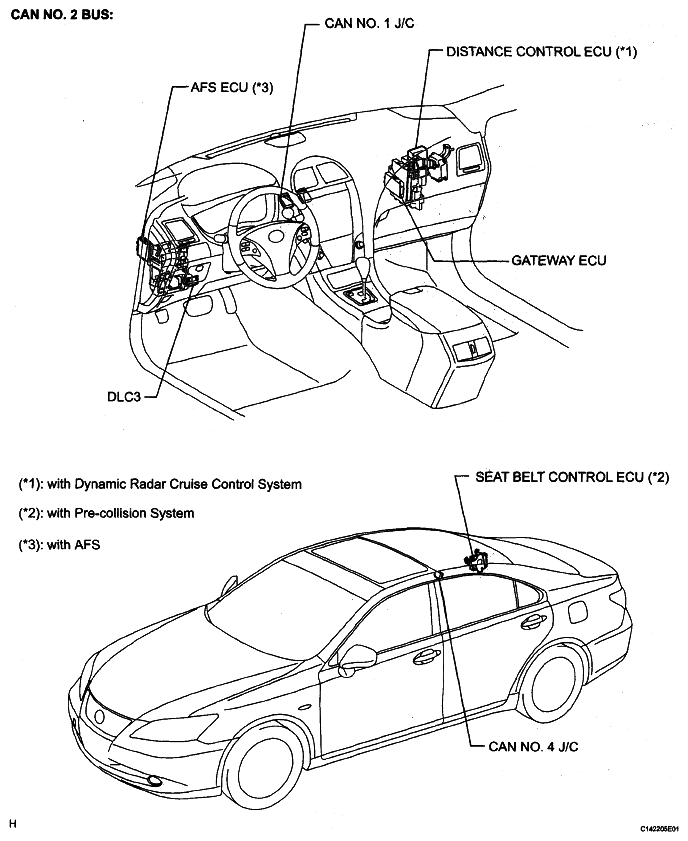

Fig 2: Identifying CAN Communication System Components Location (2 Of 3)
G05254827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

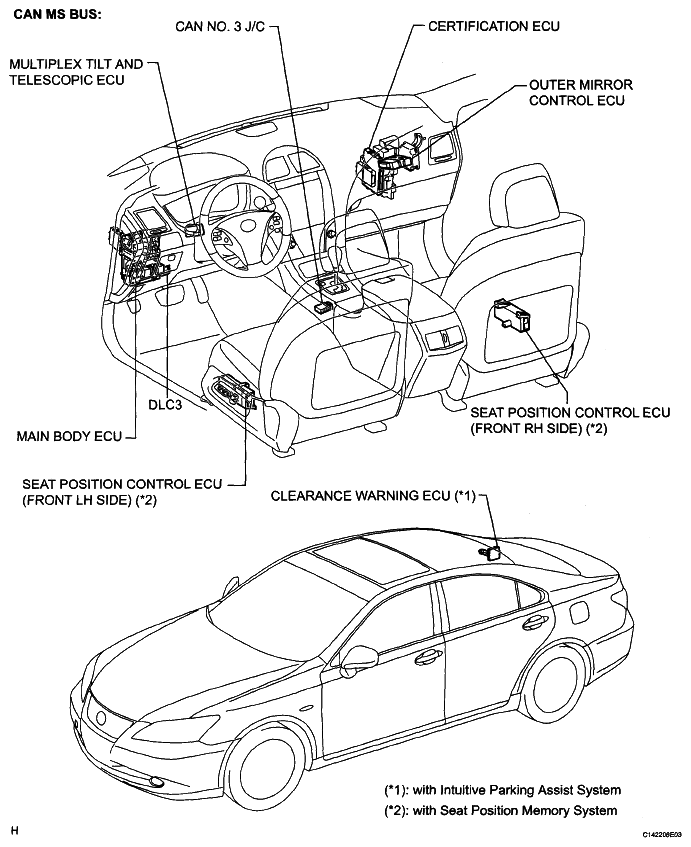

Fig 3: Identifying CAN Communication System Components Location (3 Of 3)
G05254828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
