ECM Communication Stop Mode: Wiring Diagram

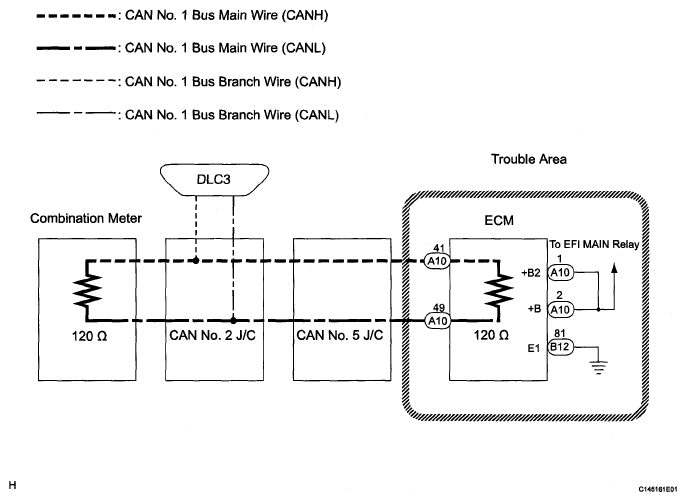

Fig 1: Combination Meter - Wiring Diagram

G05254959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
