DTC U1002 Lost Communication with Gateway Module: Wiring Diagram

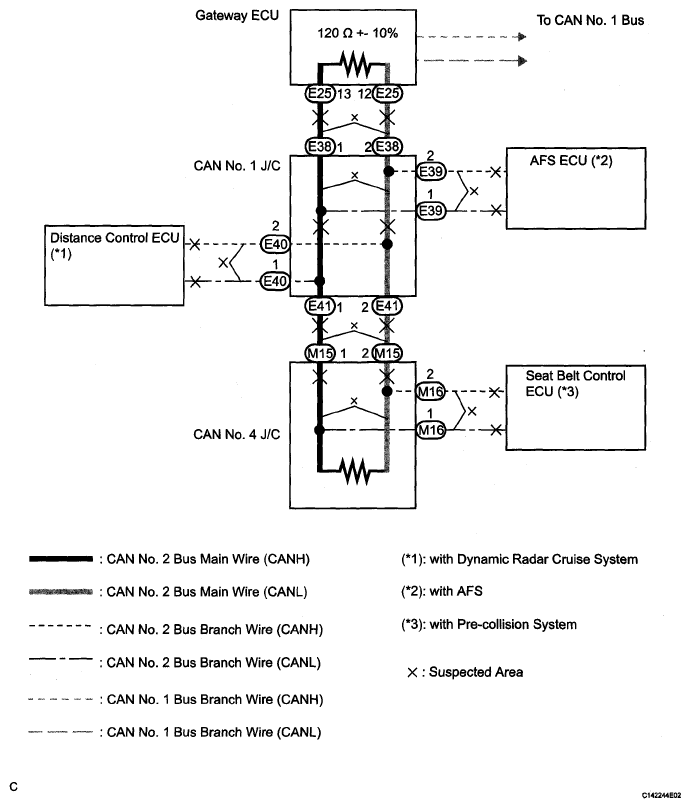

Fig 1: Gateway ECU - Wiring Diagram

G05254911

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
