Active Control Engine Mount ECU Communication Stop Mode: Wiring Diagram

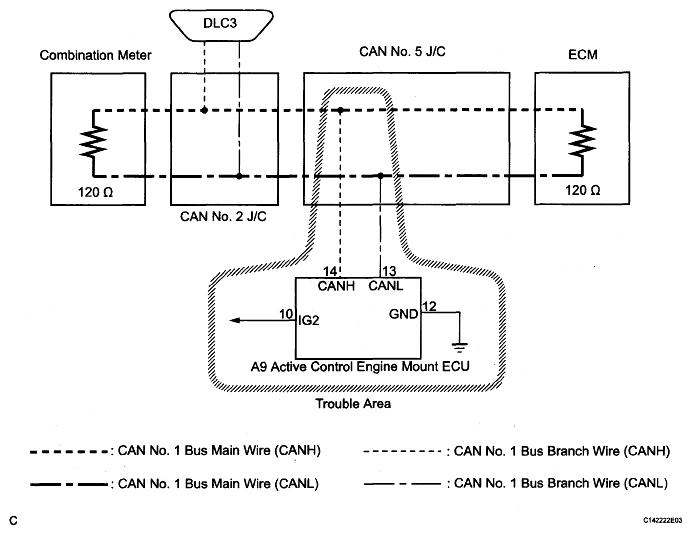

Fig 1: Active Control Engine Mount ECU - Wiring Diagram

G05254974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
