FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): Components

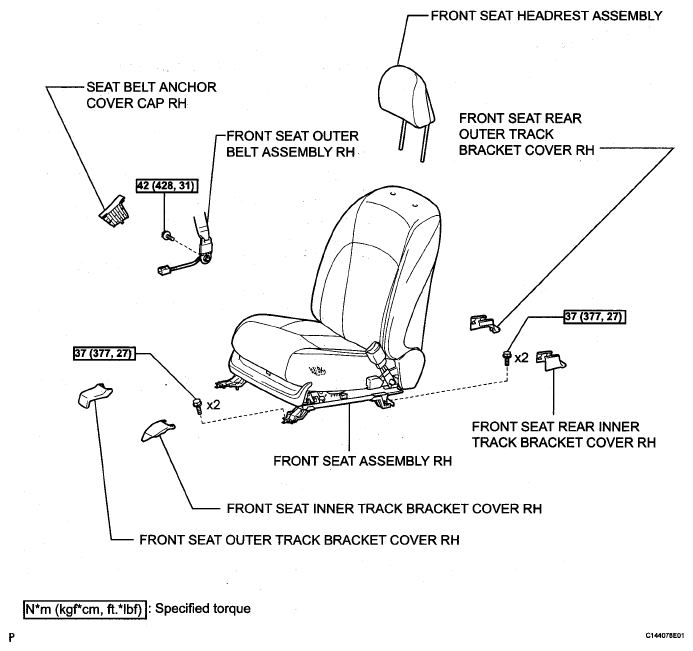

Fig 1: Front Seat Cushion Assembly Replacement Components With Torque Specifications (1 Of 2)
G05251908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

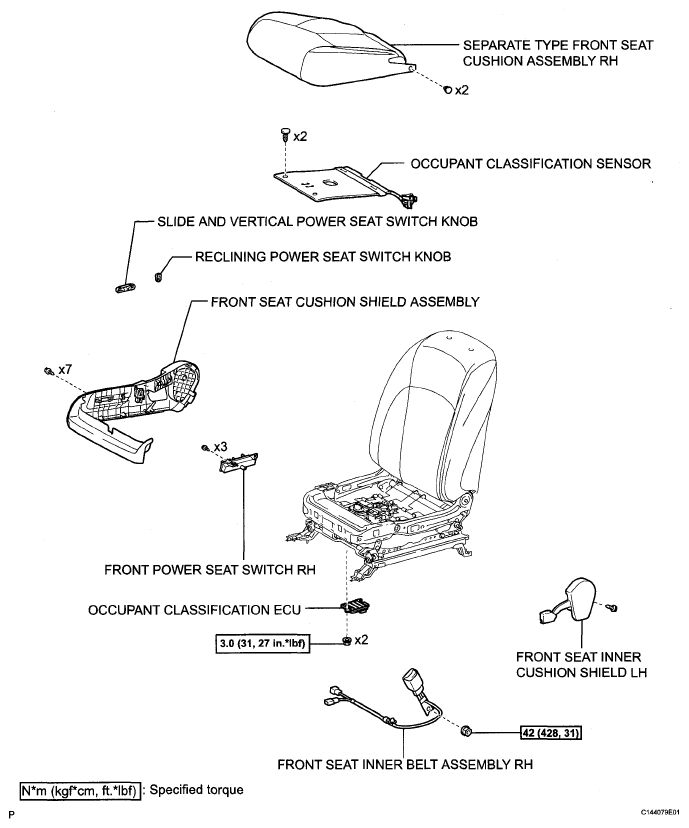

Fig 2: Front Seat Cushion Assembly Replacement Components With Torque Specifications (2 Of 2)
G05251909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
