Air Intake Control Circuit: Wiring Diagram

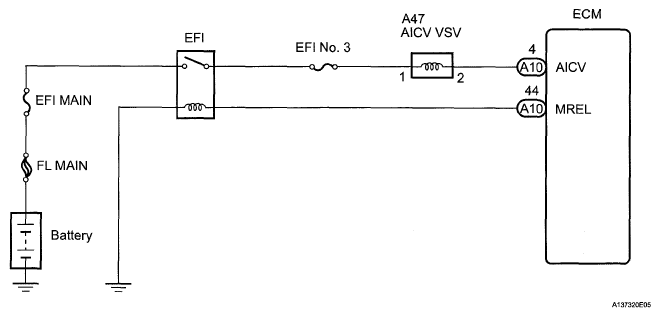

Fig 1: Identifying Air Intake Control Wiring Diagram

G05247882

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
