ECU Power Source Circuit: Wiring Diagram

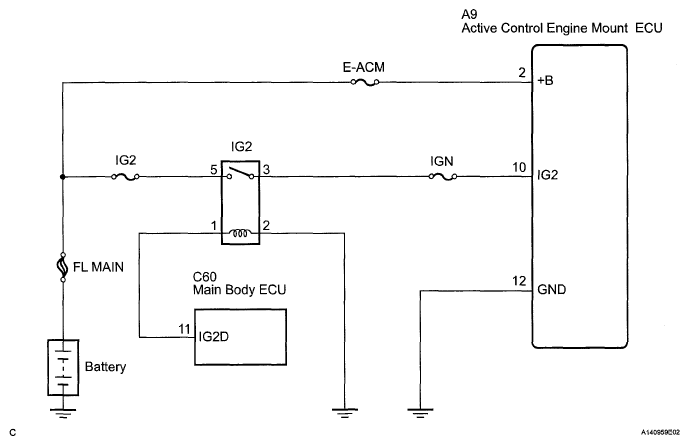

Fig 1: Identifying ECU Power Source Wiring Diagram

G05247910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
