Vehicle Speed Signal Circuit between Navigation ECU and Multi-Display: Wiring Diagram

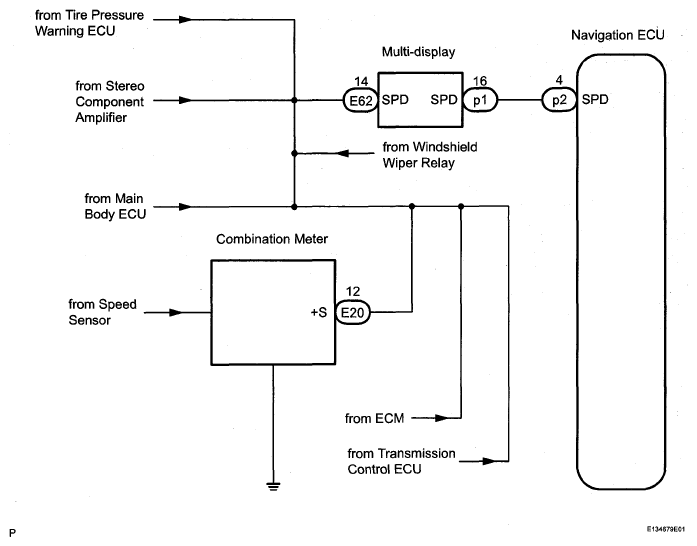

Fig 1: Vehicle Speed Signal Circuit Between Navigation ECU And Multi-Display - Wiring Diagram
G05253286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
