Navigation ECU Power Source Circuit: Wiring Diagram

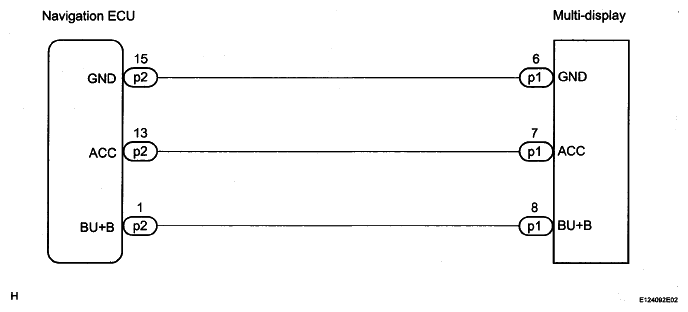

Fig 1: Navigation ECU Power Source Circuit - Wiring Diagram

G05253348

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
