Entry Lock Switch Circuit: Wiring Diagram

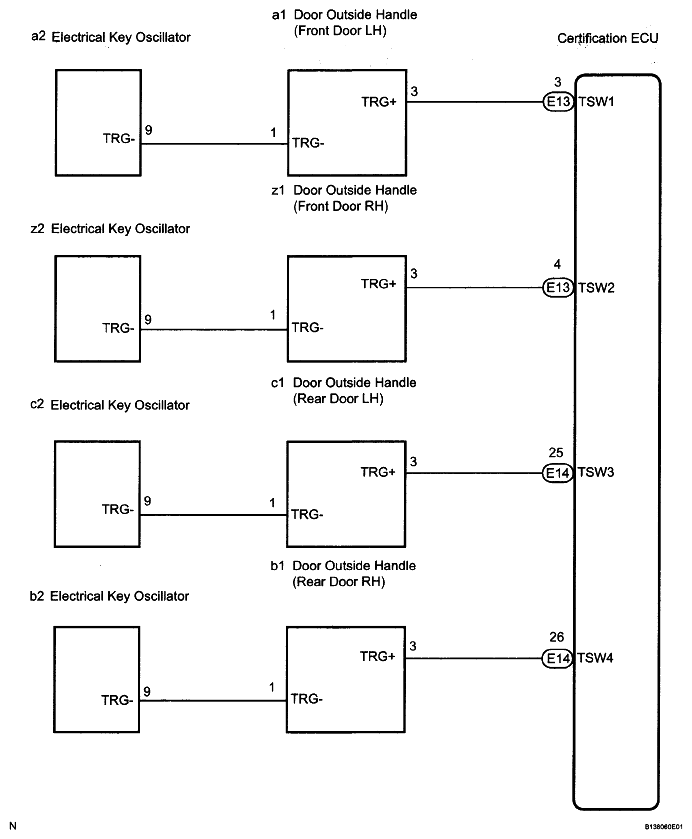

Fig 1: Entry Lock Switch Circuit - Wiring Diagram

G05252754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
