System Diagram

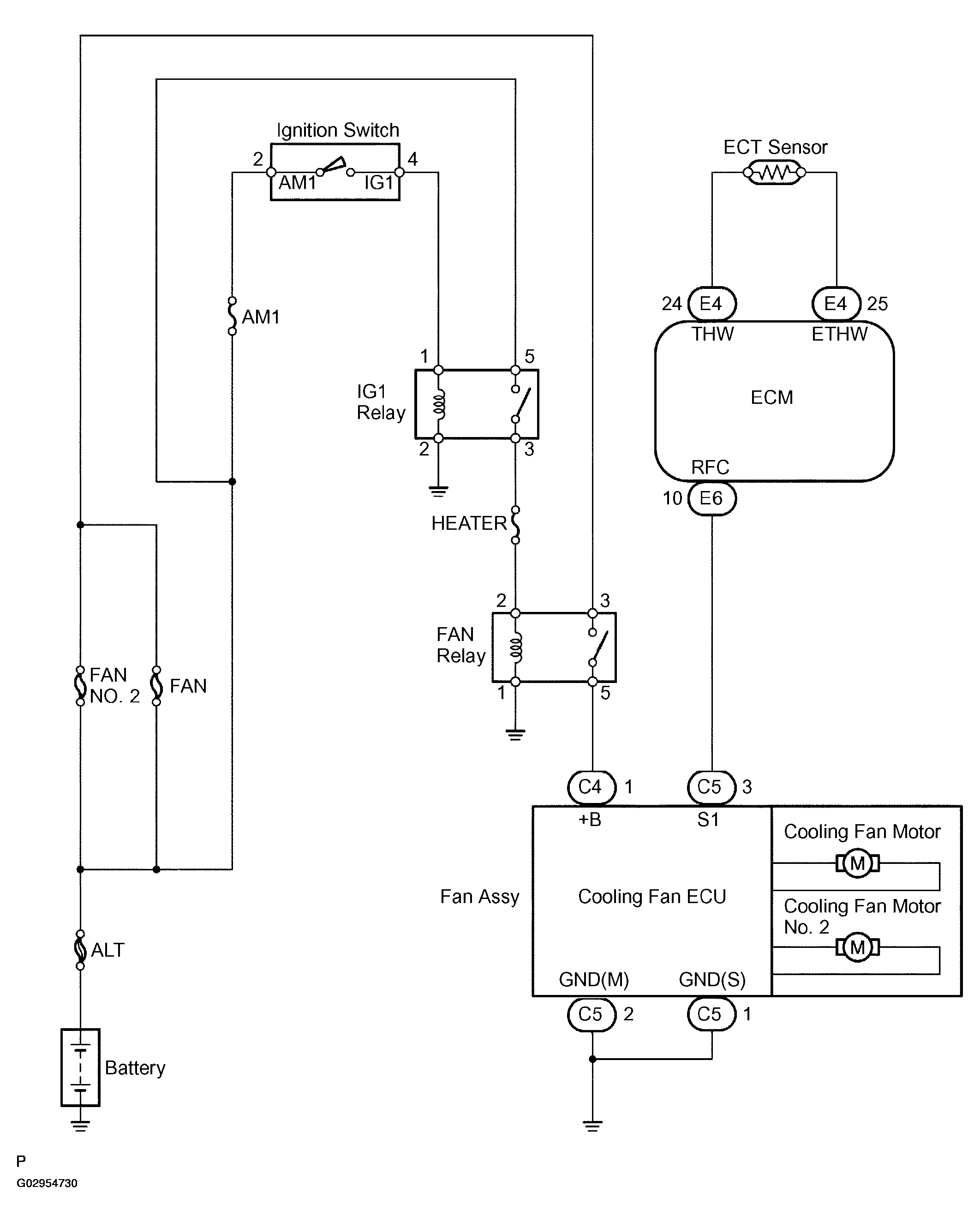

Fig 1: System Diagram - Cooling Fan System
G02954730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
