Inspection Procedure
- PERFORM ACTIVE TEST (SPEEDOMETER)
- Select the ACTIVE TEST, use the hand-held tester to generate a control command, and then check that the speedometer operates.
Combination meter assy:
COMBINATION METER - ACTIVE TESTItem Test Details Diagnostic Note SPEED METER 0 (0)/25 (40)/50 (80)/75 (120)/99 (160)/124 (200)/150 (240)/175 (280) km/h (mph) Confirm that vehicle is stopped and engine is idling. It is normal that doors will be locked automatically when performing speedometer Active Test. The displayed value has same units (km/h, mph) as main scale of vehicle's speedometer. Needle position should be within acceptable tolerance.
OK: The meter operates normally.
NG: REPLACE COMBINATION METER ASSY (See COMBINATION METER ASSY )
OK: GO TO NEXT STEP
- Select the ACTIVE TEST, use the hand-held tester to generate a control command, and then check that the speedometer operates.
- READ DATA LIST (SPEEOMETER)
- Check the DATA LIST for proper functioning of the speedometer.
Combination meter assy:
COMBINATION METER - ACTIVE TESTItem Measurement Item/Display (Range) Normal Condition Diagnostic Note SPEED METER Vehicle speed/Min.: 0km/h (0 mph), Max.: 255 km/h (158 mph) Almost same as actual vehicle speed (when driving) -
OK: Vehicle speed on tester is almost equal to the actual vehicle speed.
NG: Go to step 3
OK: REPLACE COMBINATION METER ASSY (See COMBINATION METER ASSY )
- Check the DATA LIST for proper functioning of the speedometer.
- CHECK COMBINATION METER ASSY
- Disconnect the C8 meter connector.
- Measure the voltage of the connector.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Condition Specified Condition C8-20 (S1) - Body ground - Ignition switch ON
- Shift lever on N position
- Turn rear wheel slowly
10 to 14 V (pulse generation)
NG: Go to step 4
OK: REPLACE COMBINATION METER ASSY (See COMBINATION METER ASSY )
- CHECK WIRE HARNESS (SKID CONTROL ECU WITH ACTUATOR - COMBINATION METER ASSY)
- Disconnect the S6 ECU connector.
- Disconnect the C8 meter connector.
- Measure the resistance of the wire harness side connectors.
Standard:

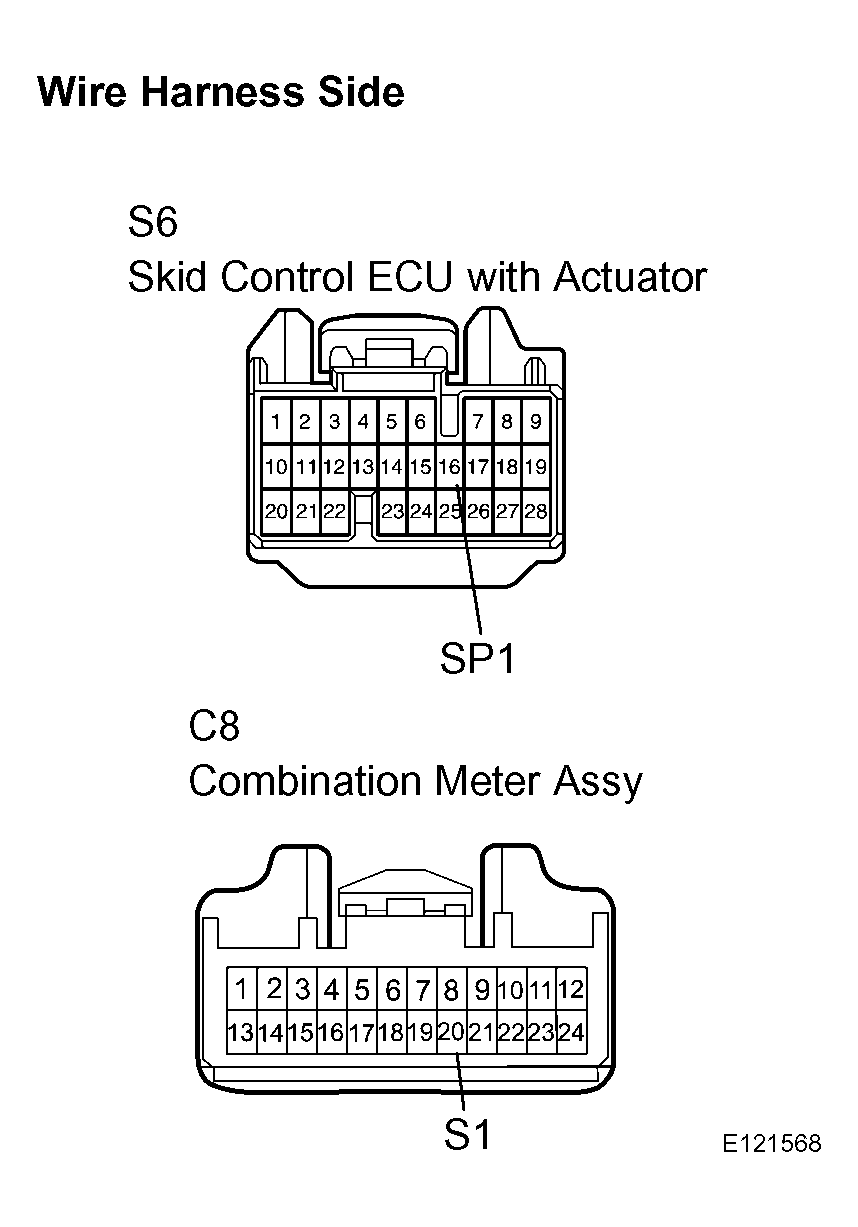

TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition S6-16 (SP1) - C8-20 (S1) Below 1 Ω
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to ABS WITH EBD & BA & TRAC & VSC SYSTEM (See ABS WITH EBD & BA & TRAC & VSC SYSTEM - DIAGNOSTICS )
