Automatic Glare-Resistant EC Mirror: Location

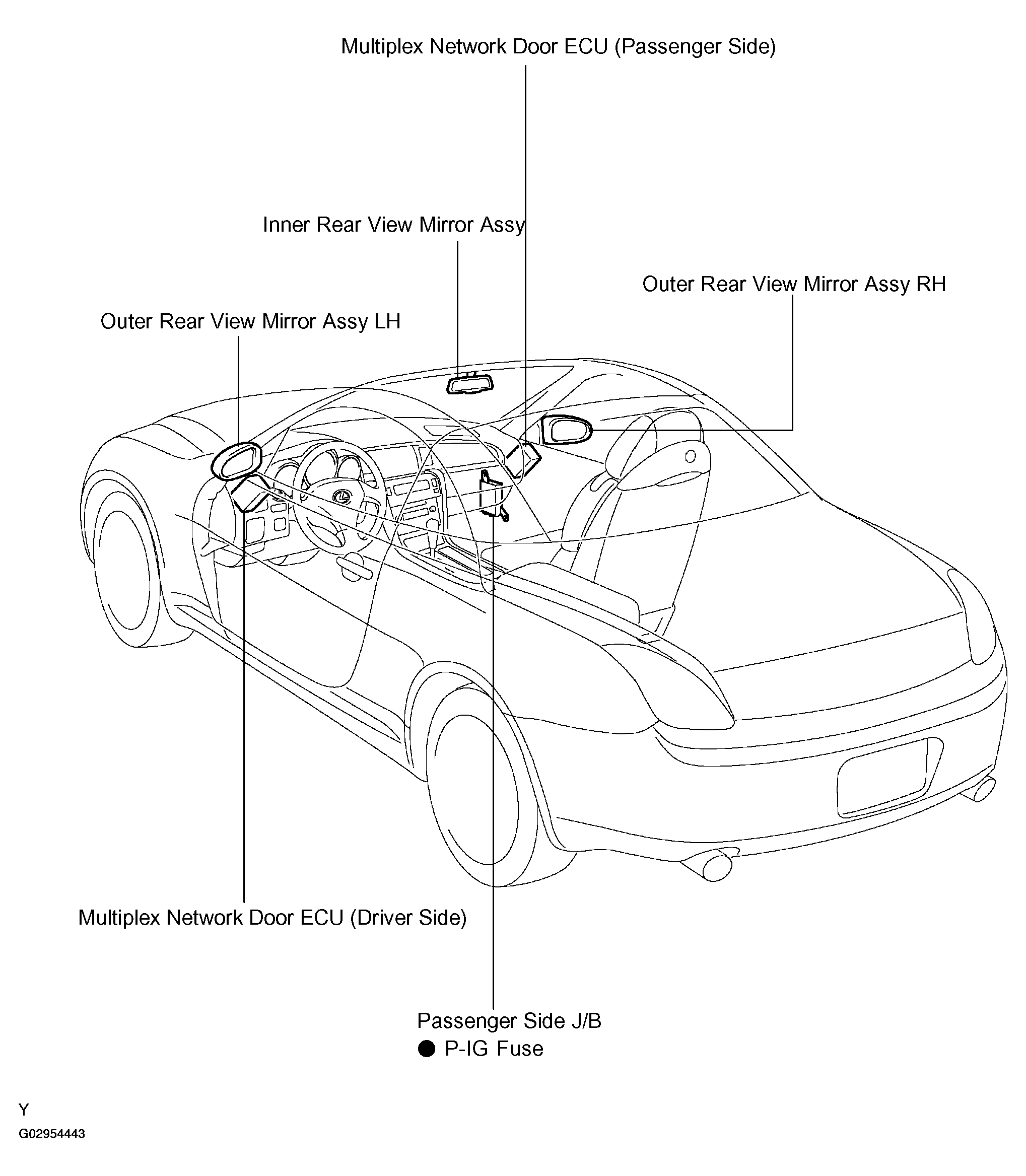

Fig 1: Identifying Location Of Automatic Glare-Resistant EC Mirror Components & Replacements

G02954443

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
