Power Mirror Control System - Diagnostics
>>
Power Mirror Does Not Turn To Memorized Direction
>>
Wiring Diagram
Power Mirror Does Not Turn To Memorized Direction: Wiring Diagram

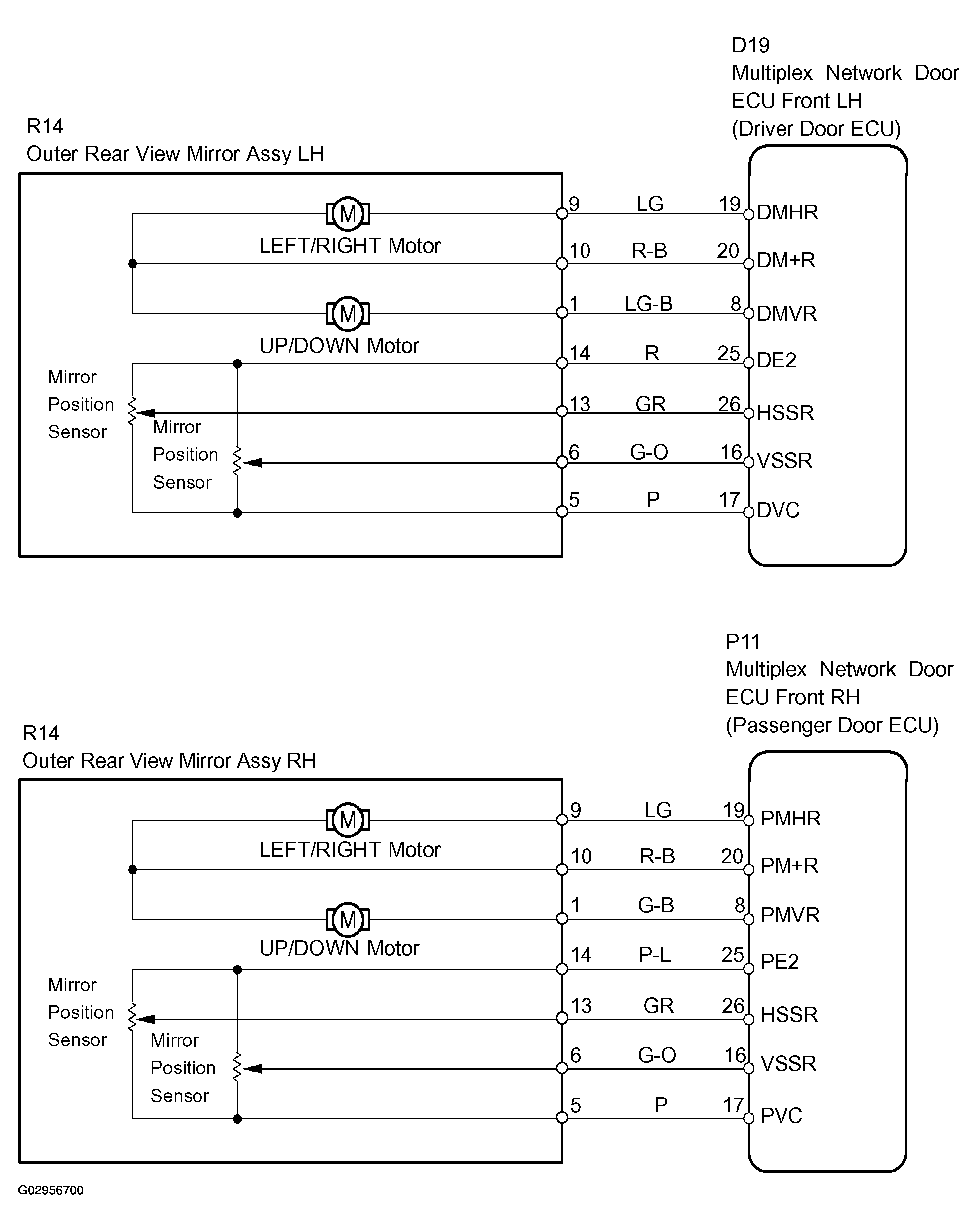

Fig 1: Power Mirror Does Not Turn To Memorized Direction Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
