Power Mirror Control System - Diagnostics: Location

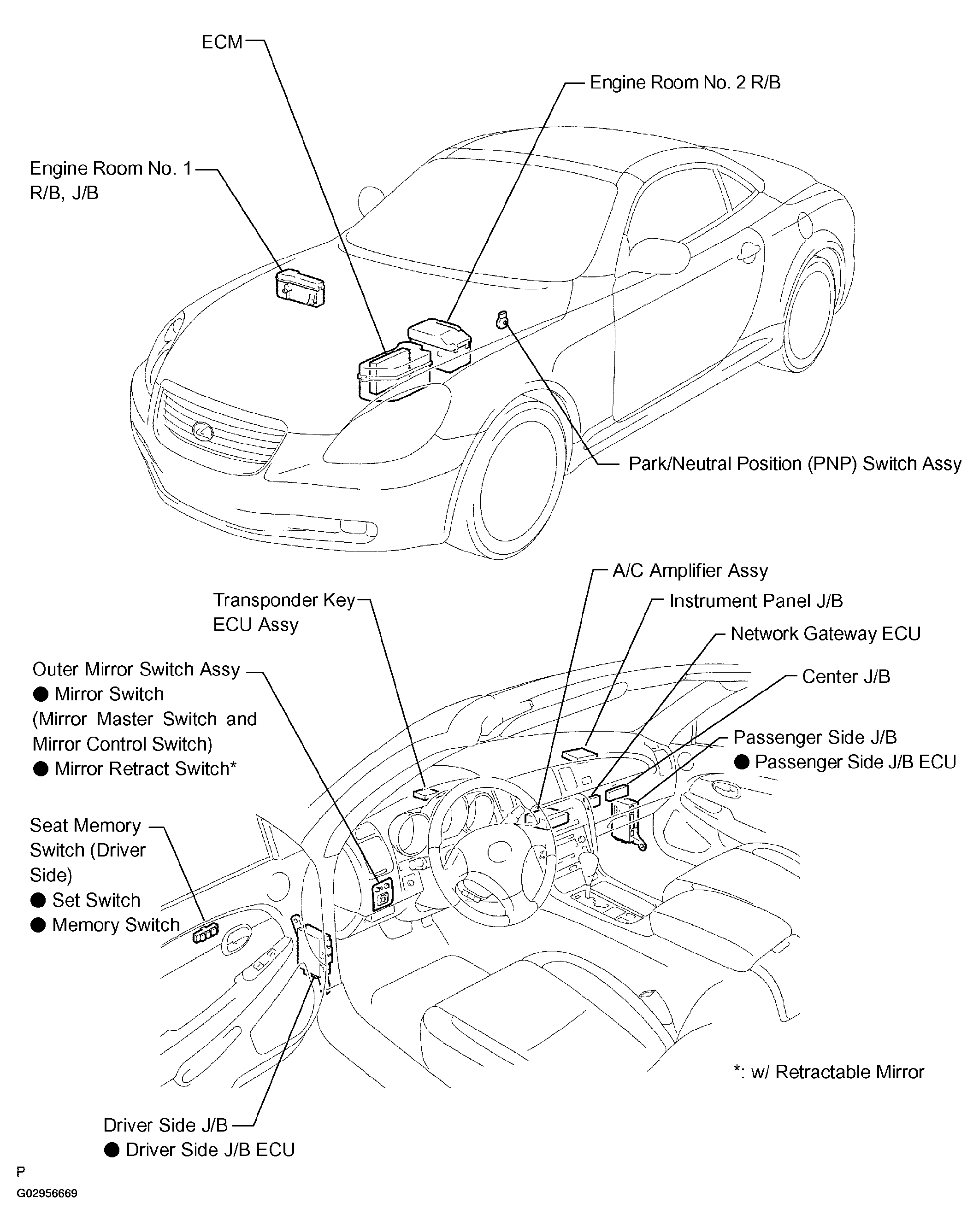

Fig 1: Locating Power Mirror Control System Components & Replacements (1 Of 2)
G02956669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

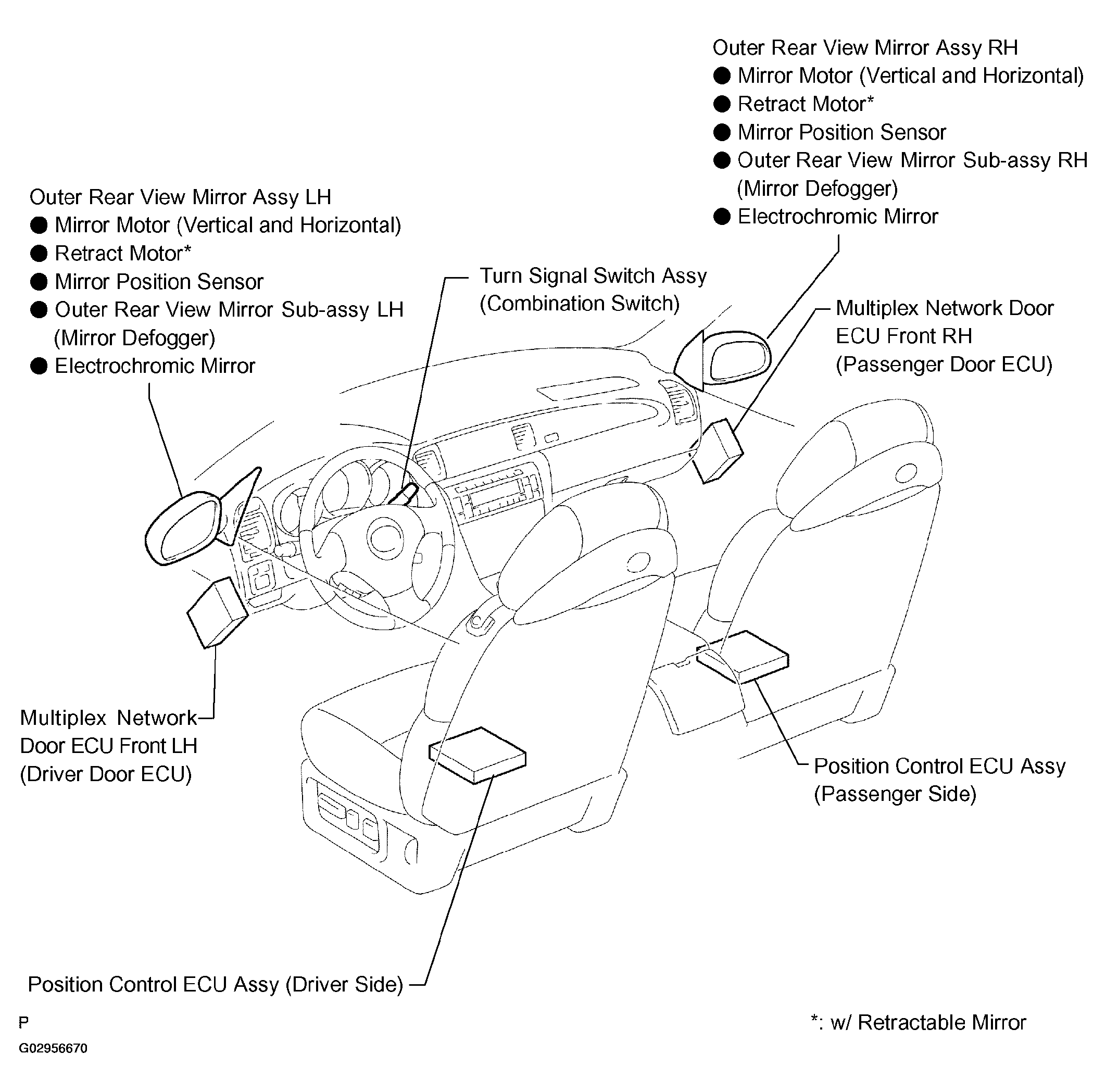

Fig 2: Locating Power Mirror Control System Components & Replacements (2 Of 2)
G02956670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
