Either Of Driver Or Passenger Power Mirror Cannot Be Adjusted Manually: Wiring Diagram

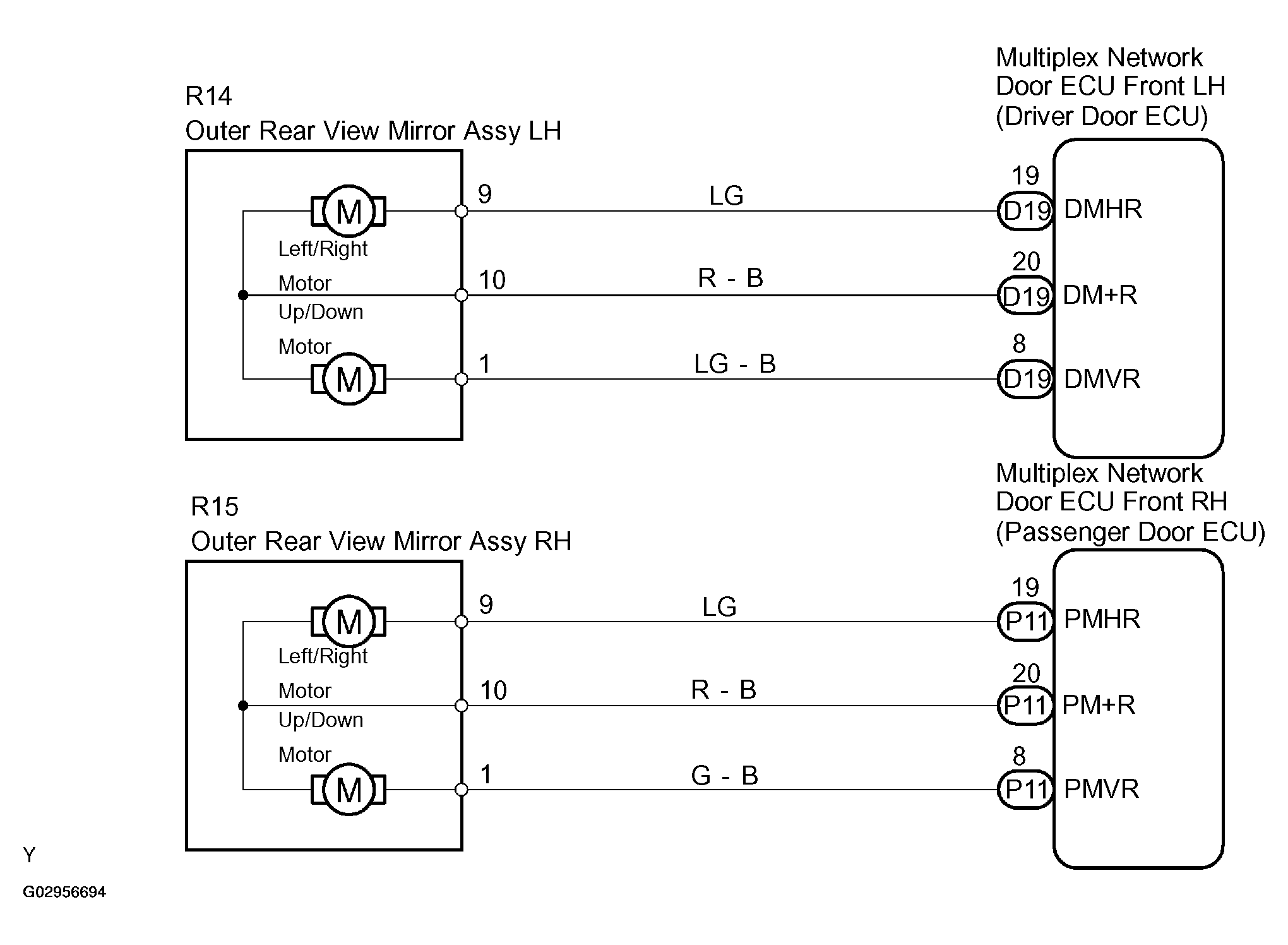

Fig 1: Either Of Driver Or Passenger Power Mirror Cannot Be Adjusted Manually Wiring Diagram
G02956694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
