Both Of Driver And Passenger Power Mirrors Cannot Be Adjusted Manually: Wiring Diagram

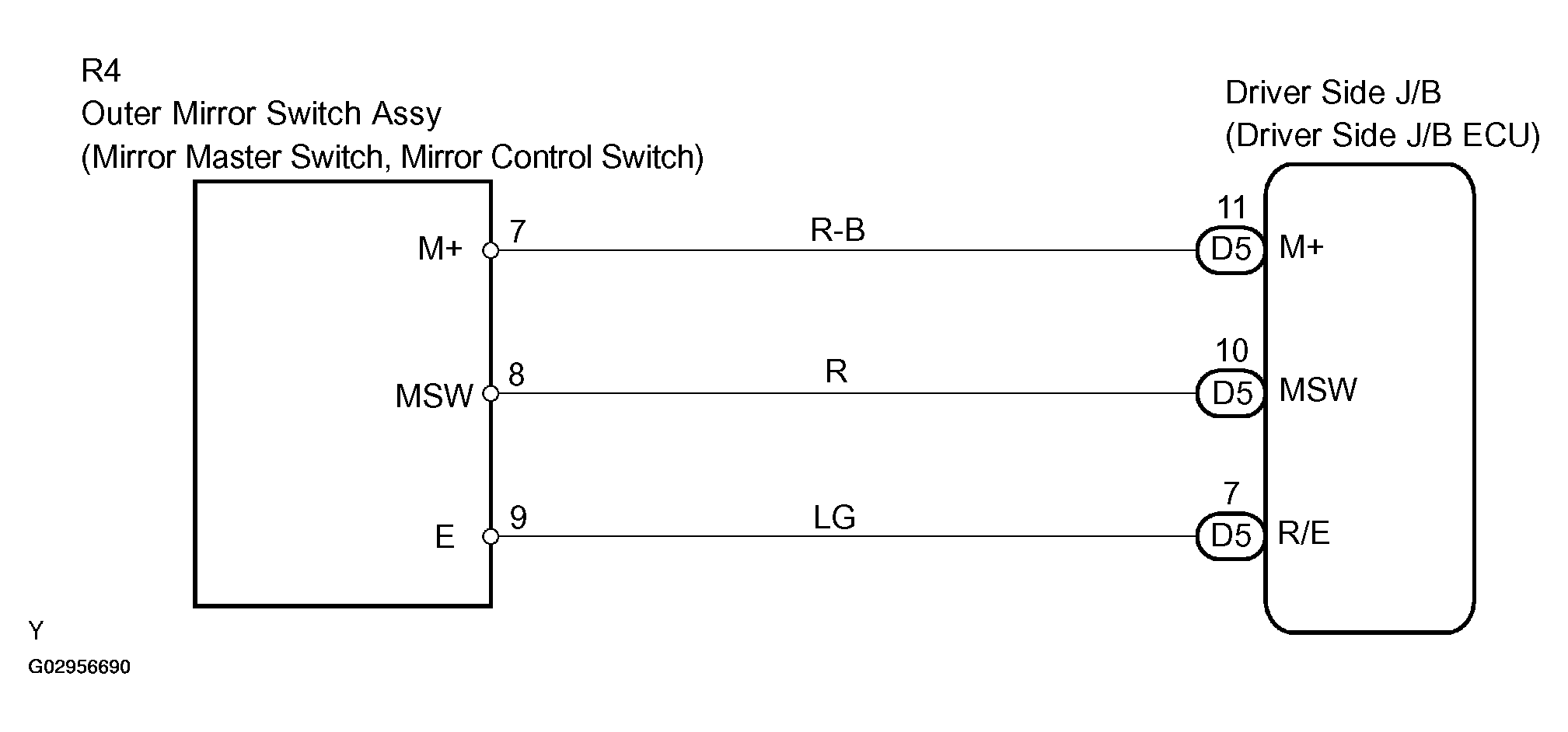

Fig 1: Both Driver & Passenger Power Mirrors Cannot Be Adjusted Manually Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
