Lexus
>>
2006
>>
SC 430
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System - Diagnostics
>>
System Diagram
System Diagram

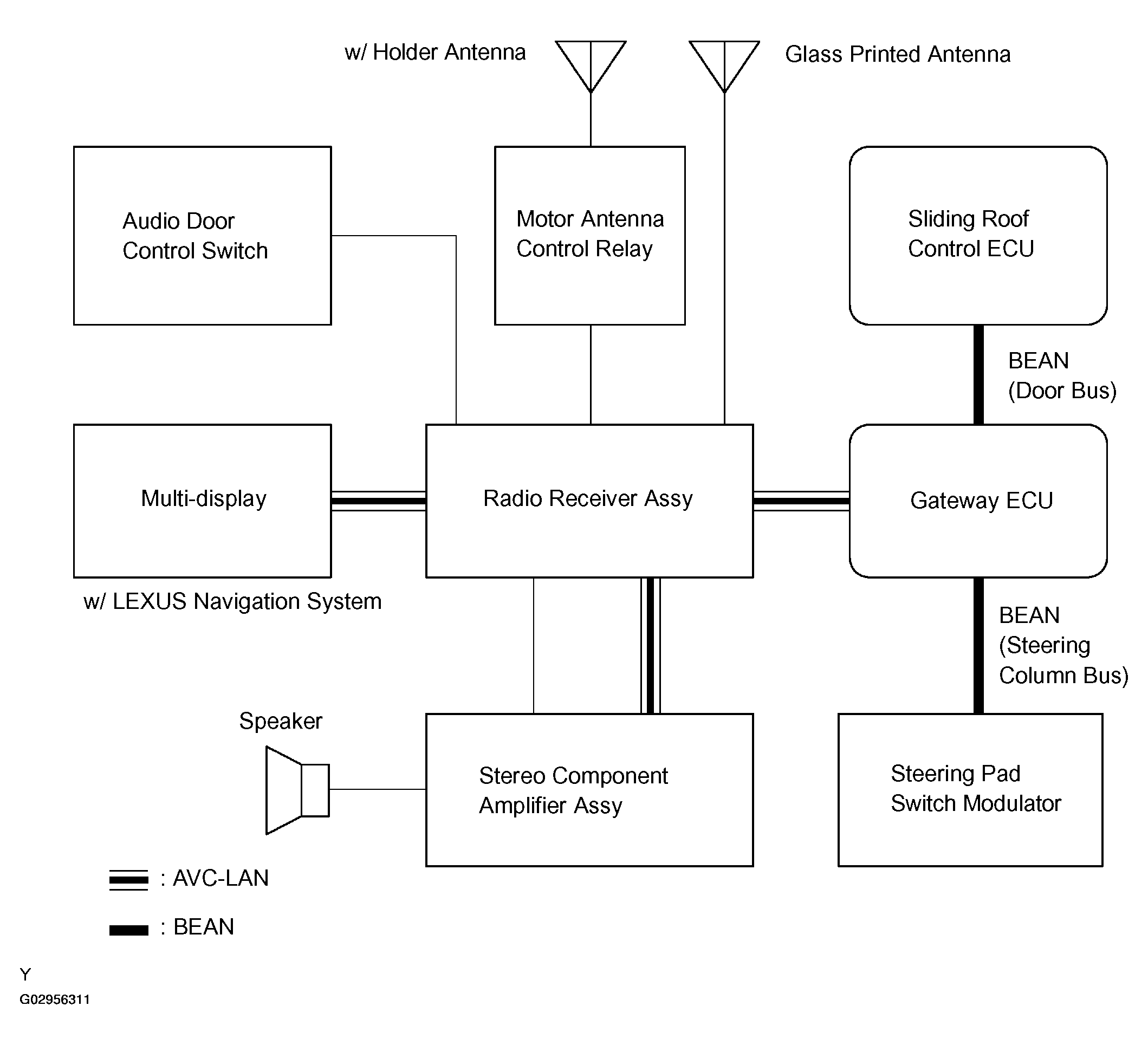

Fig 1: Audio System Communication Diagram
