System Diagram

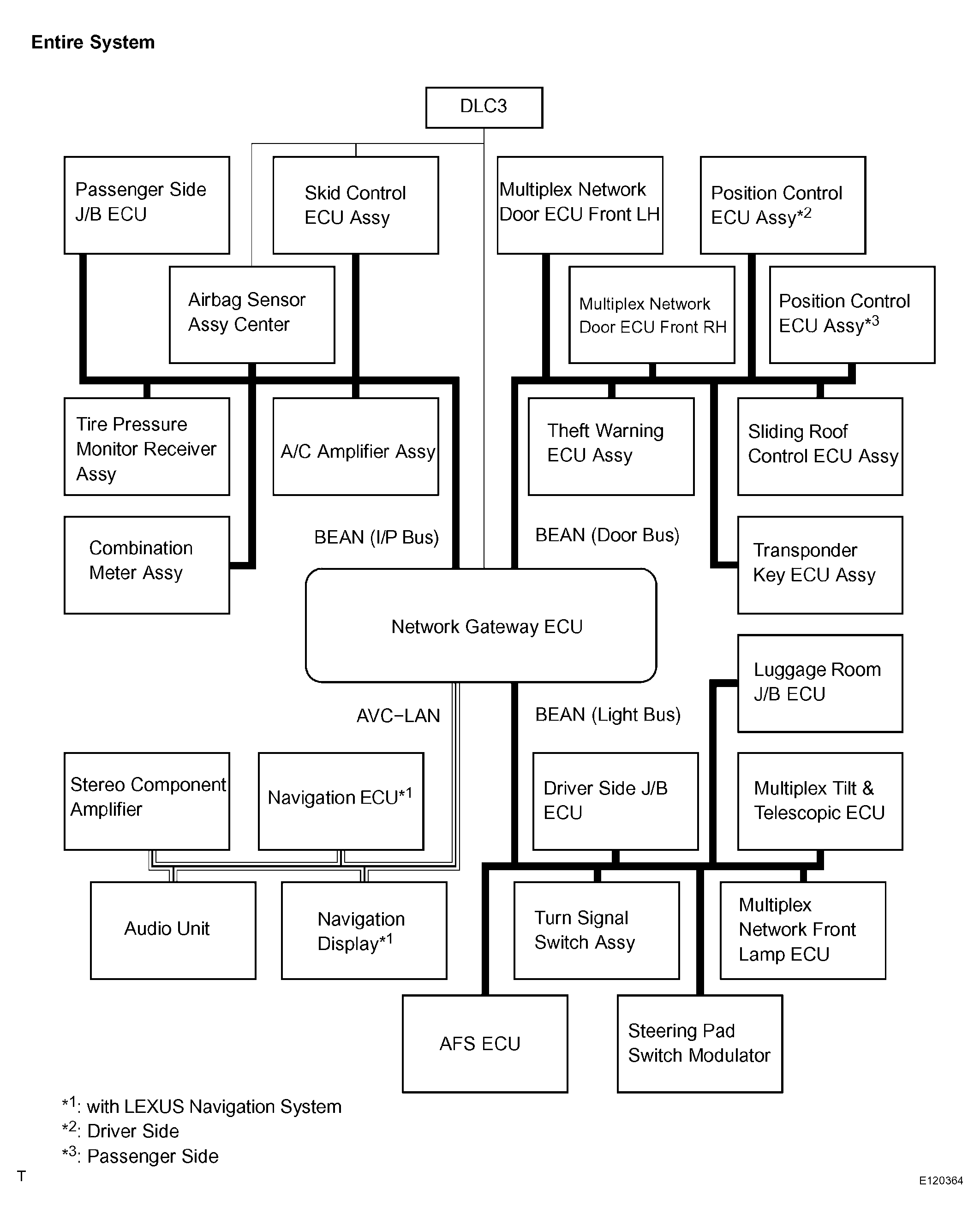

Fig 1: Multiplex Communication System Diagram
G04107105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

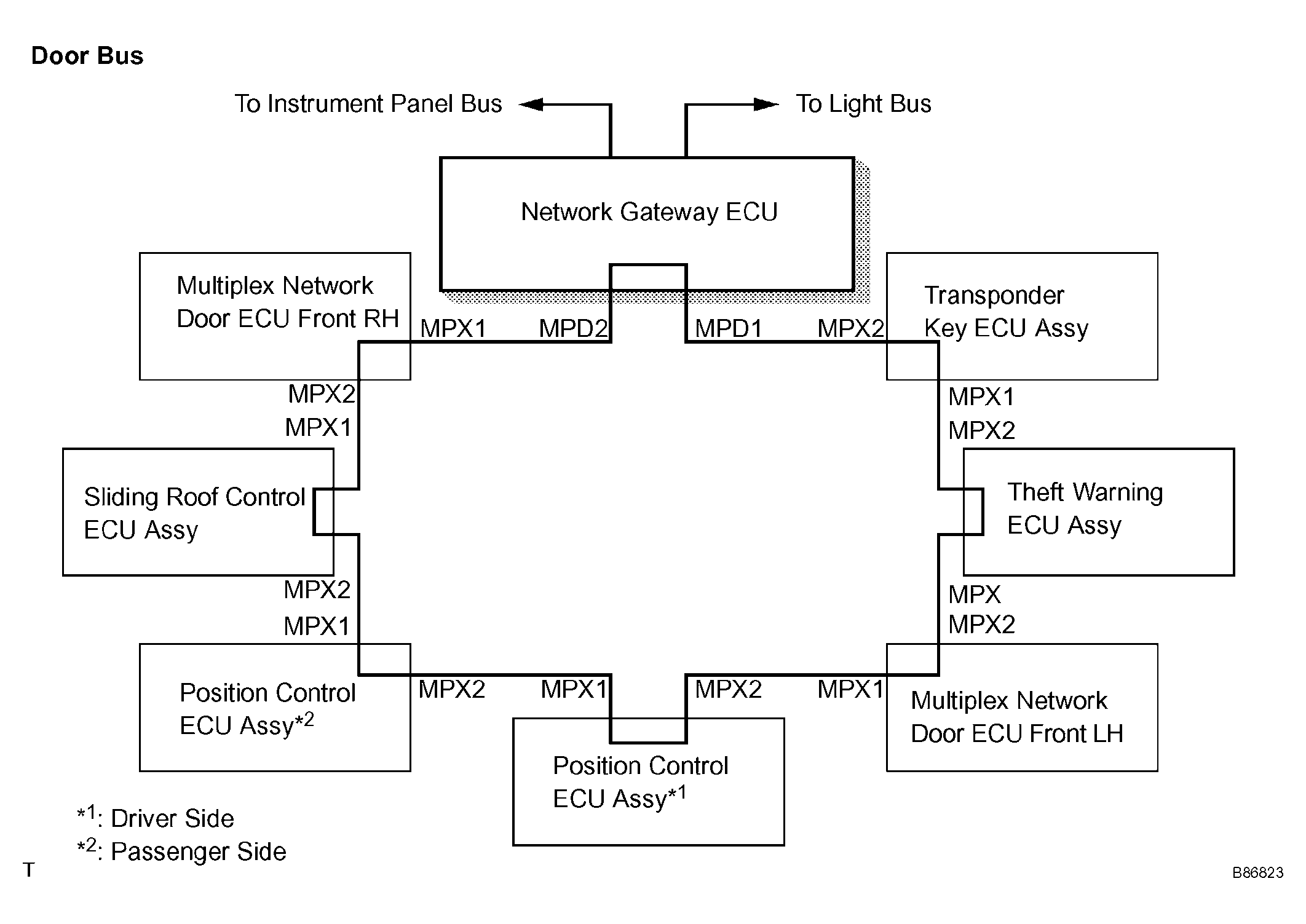

Fig 2: Door Bus - System Diagram
G04107106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

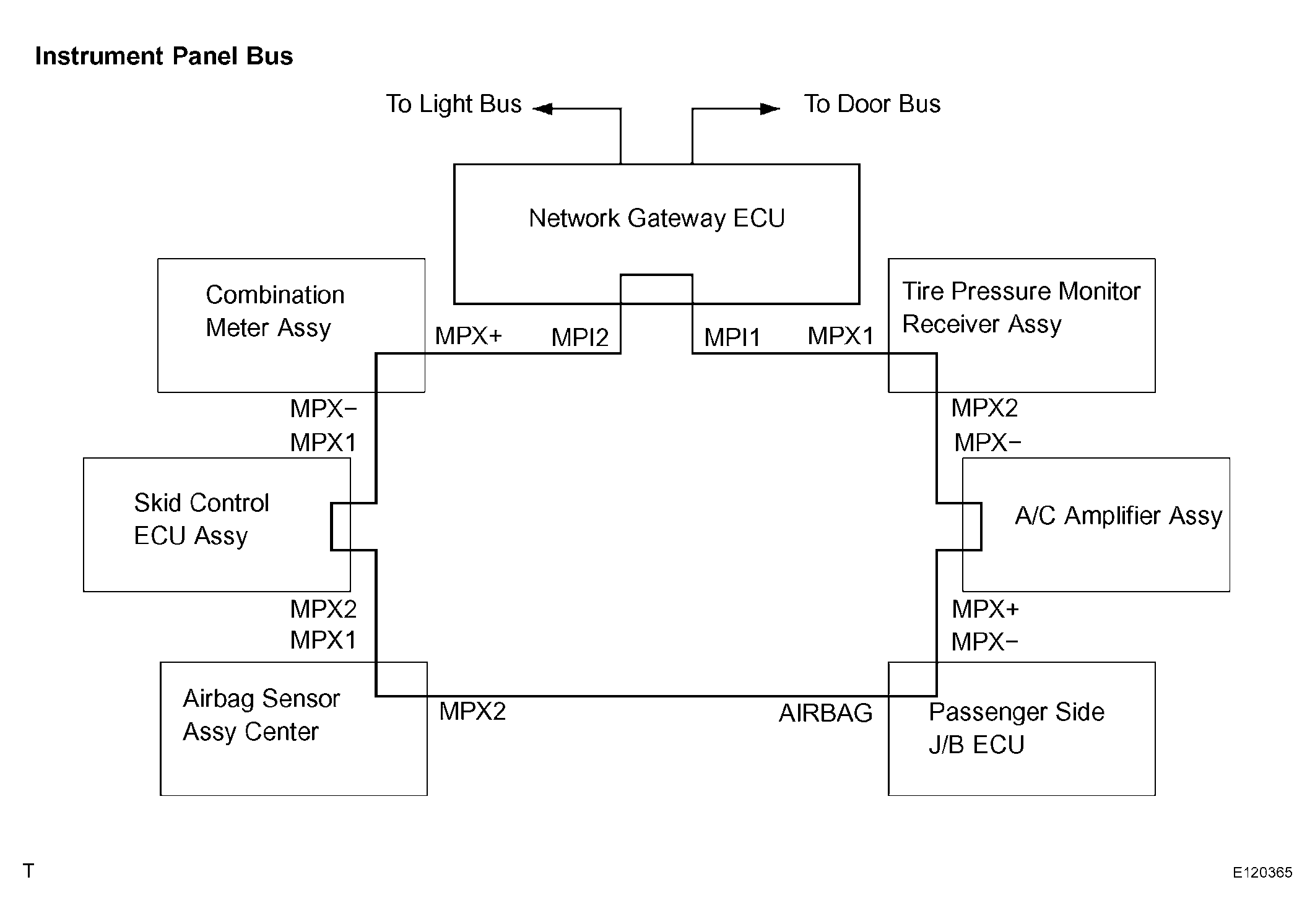

Fig 3: Instrument Panel Bus - System Diagram
G04107107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

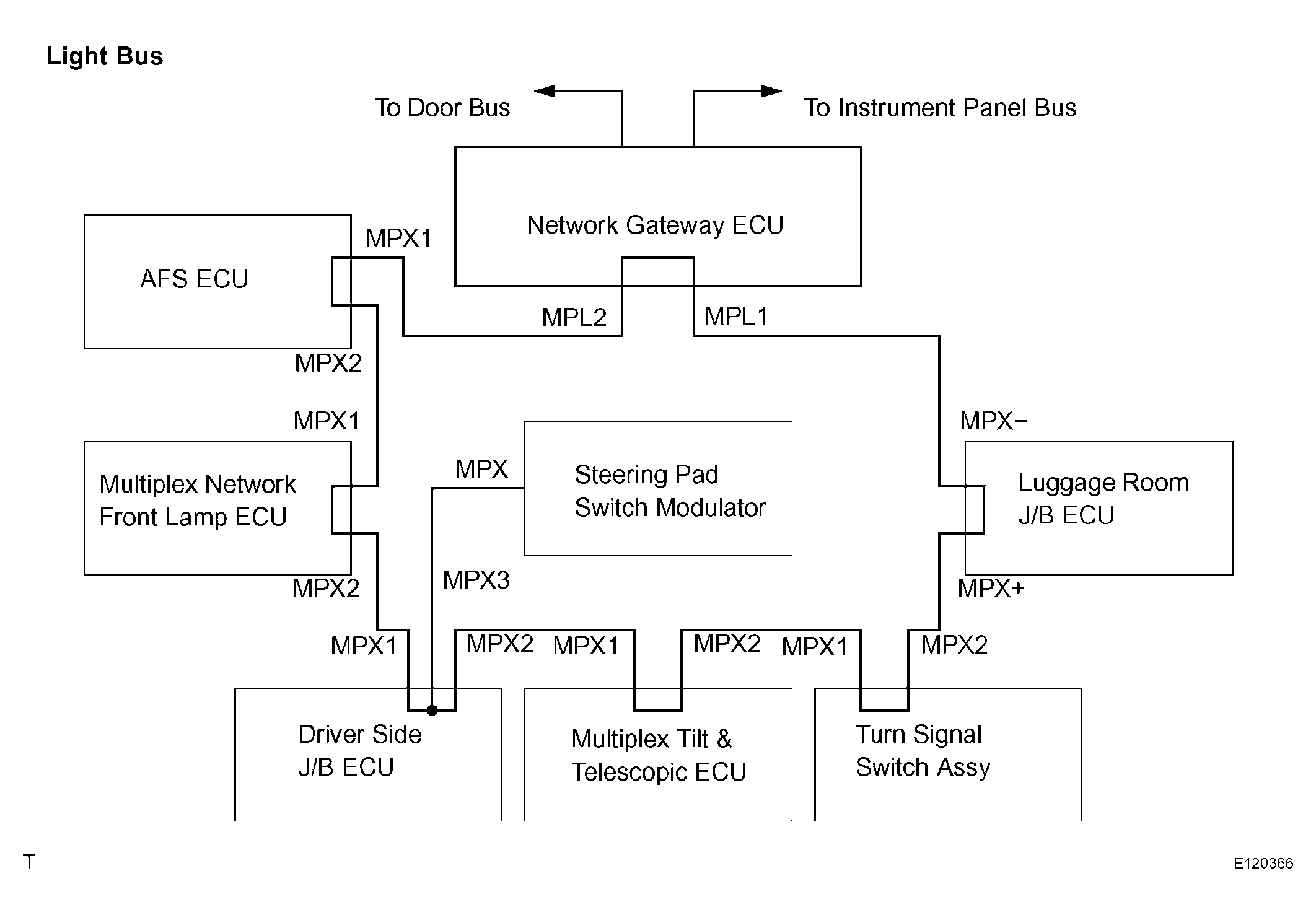

Fig 4: Light Bus - System Diagram
G04107108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

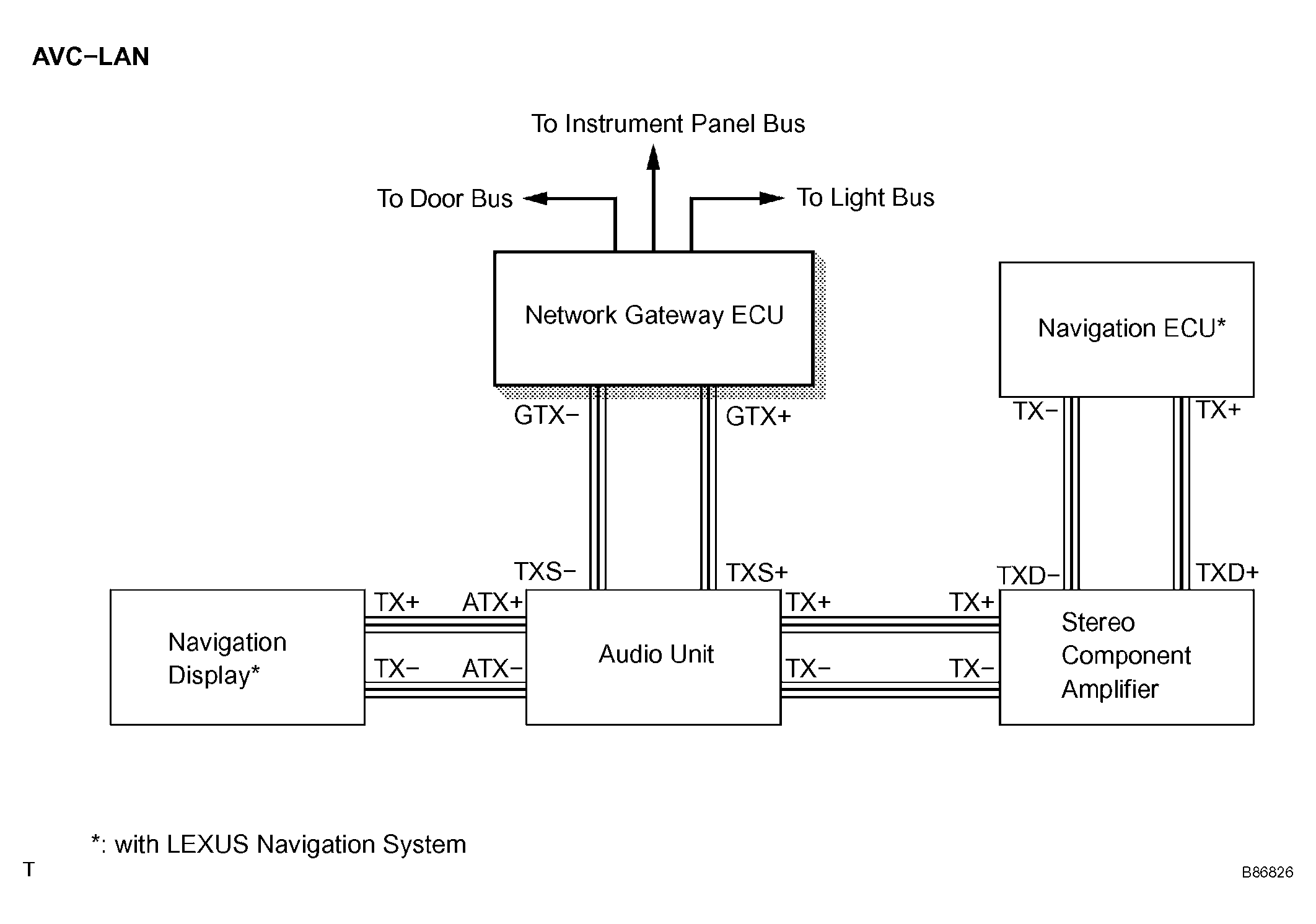

Fig 5: AVC-LAN - System Diagram
G04107109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
