Inspection Procedure

CHECK POWER WINDOW OPERATION

Lower the passenger door power window from the fully closed position to the fully open position. Check if the DTC is erased.

Result:

DTC RESULT

Result	Proceed to
DTC is erased	A
DTC is not erased	B

HINT:

If the DTC is erased, it is possible that the multiplex network door ECU front RH incorrectly detected this DTC previously.

B: Go to step 2
A: END

RESET POWER WINDOW REGULATOR MOTOR
1. Reset the power window regulator motor (see INITIALIZATION ).
2. Check if the power window AUTO UP/DOWN function operates normally.
  OK: AUTO UP/DOWN function operates normally.
1. NG: Go to step 3
2. OK: END
READ DATA LIST (LIMIT SWITCH)
1. Check the DATA LIST for proper functioning of the limit switch.
  Multiplex network door ECU front RH:

  Fig 1: Multiplex Network Door ECU Front RH Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK: ON (jam protection limit switch operates) appears on screen.
1. NG: Go to step 4
2. OK: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT RH

CHECK WIRE HARNESS (MULTIPLEX NETWORK DOOR ECU FRONT RH - POWER WINDOW REGULATOR MOTOR ASSY RH FRONT)

Disconnect the P11 ECU connector.
Disconnect the P16 motor connector.

Measure the resistance of the wire harness side connectors.

Standard:

MULTIPLEX NETWORK DOOR ECU FRONT RH - POWER WINDOW REGULATOR MOTOR ASSY RH FRONT

Tester Connection	Specified Condition
P11-10 (LMT) - P16-4 (LMT)	Below 1 ohms
P11-21 (PLS) - P16-3 (PLS)	Below 1 ohms
P11-11 (SGND) - P16-5 (E)	Below 1 ohms
P11-10 (LMT) or P16-4 (LMT) - Body ground	10 k ohms or higher
P11-21 (PLS) or P16-3 (PLS) - Body ground	10 k ohms or higher
P11-11 (SGND) or P16-5 (E) - Body ground	10 k ohms or higher

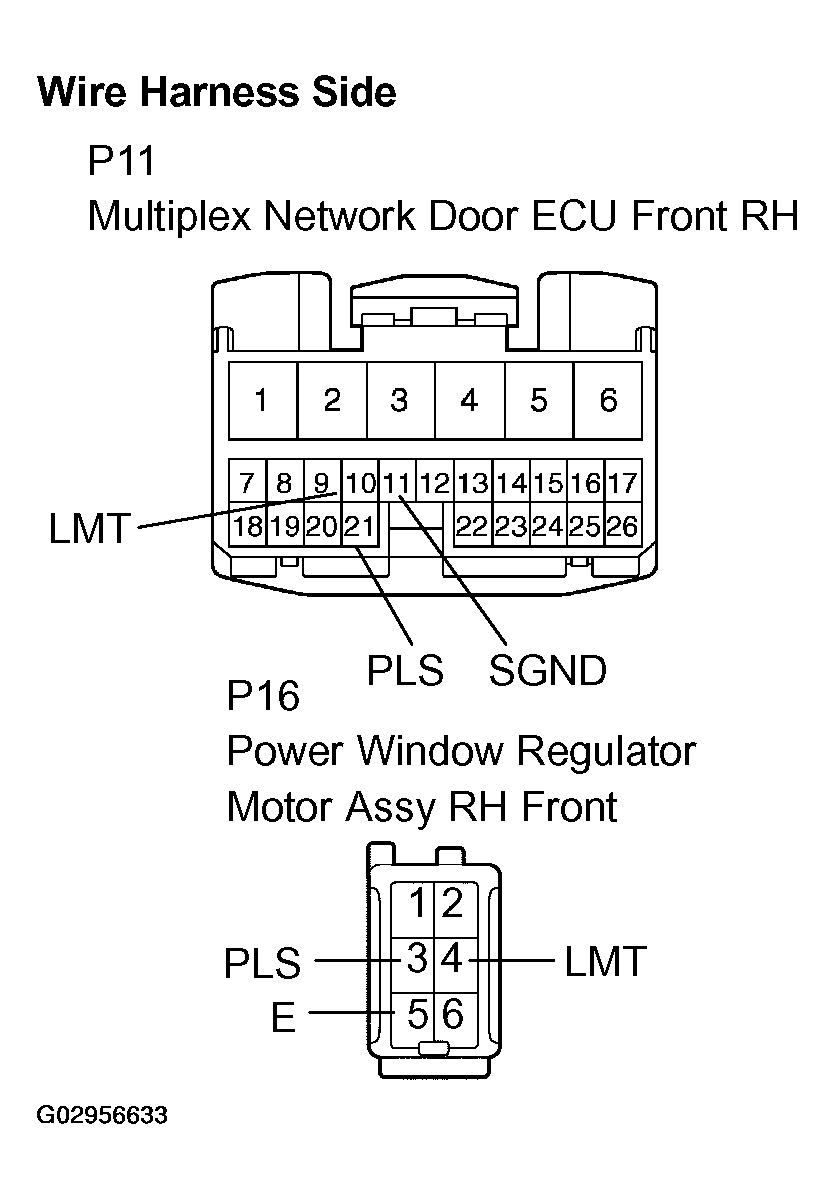

Fig 2: Checking Wire Harness (Multiplex Network Door ECU Front RH - Power Window Regulator Assy RH Front)

G02956633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step.

CHECK OPERATION OF MULTIPLEX NETWORK DOOR ECU FRONT RH
1. Temporarily replace the multiplex network door ECU front RH with a new or normally functioning one.
2. Check that a DTC is not output.
  OK: DTC is not output.
1. NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH FRONT
2. OK: NORMAL (ECU DEFECTIVE)
