Shift Lever: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    (See Step No. 5 under REPAIR INSTRUCTION )

  2. REMOVE SHIFT LEVER KNOB
    1. Remove the shift lever knob.

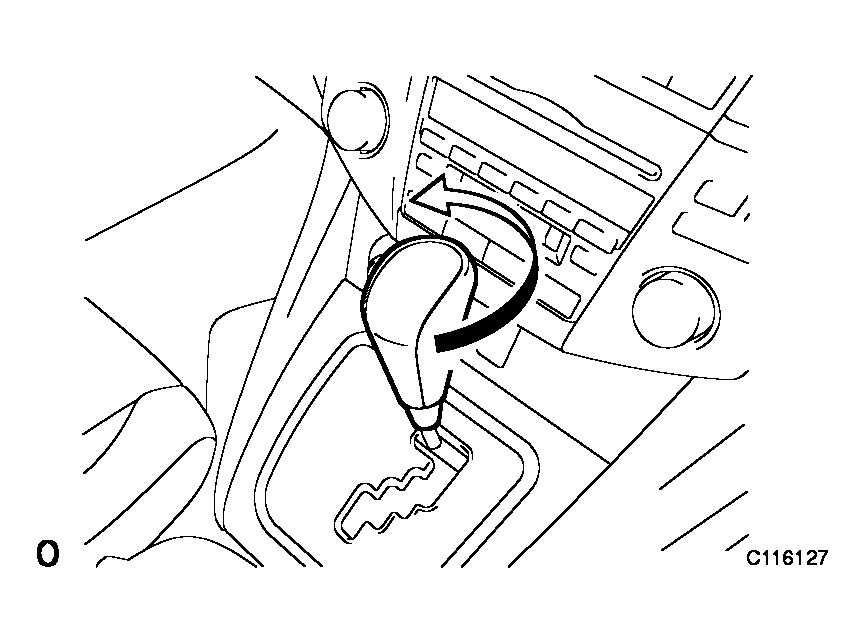

      Fig 1: Removing Shift Lever Knob
      G04112710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CONSOLE PANEL UPPER FRONT (See  REMOVAL  )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REMOVAL  )
  5. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  6. REMOVE FRONT DOOR SCUFF PLATE RH (See step 22 in  REMOVAL  )
  7. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (See step 23 in  REMOVAL  )
  8. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH (See step 17 in  REMOVAL  )
  9. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER (See step 18 in  REMOVAL  )
  10. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2 (See step 24 in  REMOVAL  )
  11. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See step 25 in  REMOVAL  )
  12. REMOVE FLOOR CARPET COVER CENTER RH (See step 27 in  REMOVAL  )
  13. REMOVE FLOOR CARPET COVER CENTER LH (See step 26 in  REMOVAL  )
  14. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 28 in  REMOVAL  )
  15. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Using a screwdriver, disconnect the cable end from the shift lever assembly.

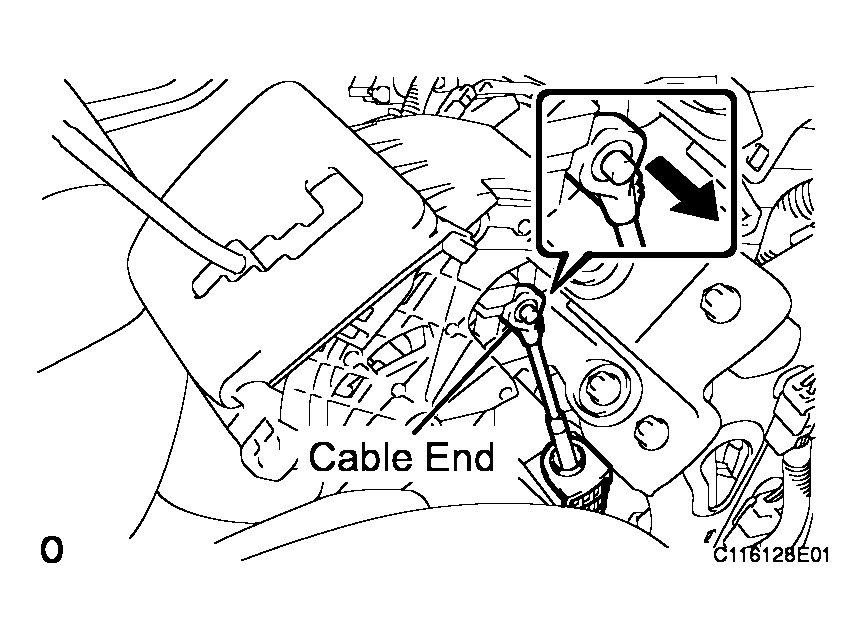

      Fig 2: Identifying Cable End
      G04112711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the stopper cap of the transmission control cable assembly.

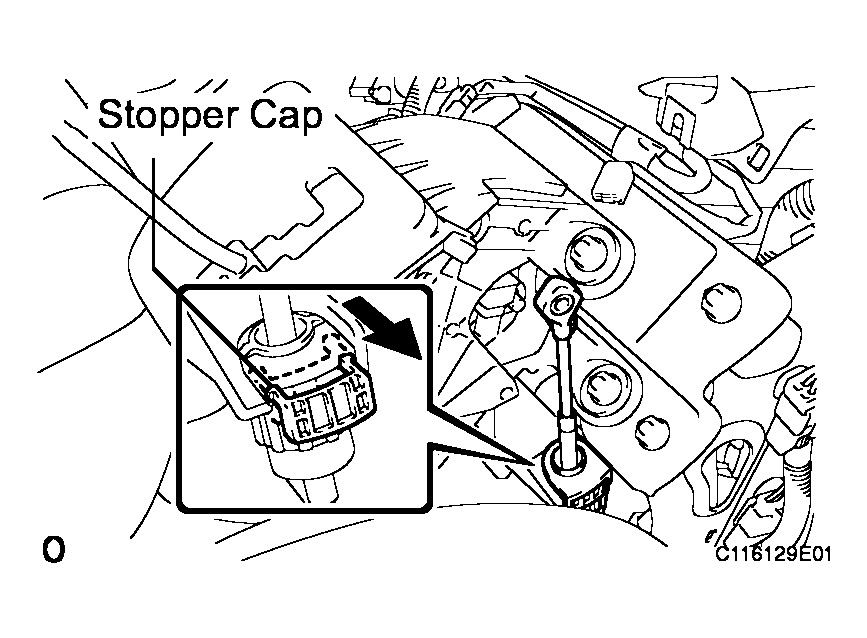

      Fig 3: Identifying Stopper Cap
      G04112712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the socket of the transmission control cable counterclockwise and remove the stopper cap.
      NOTE: Do not push in the stopper cap.

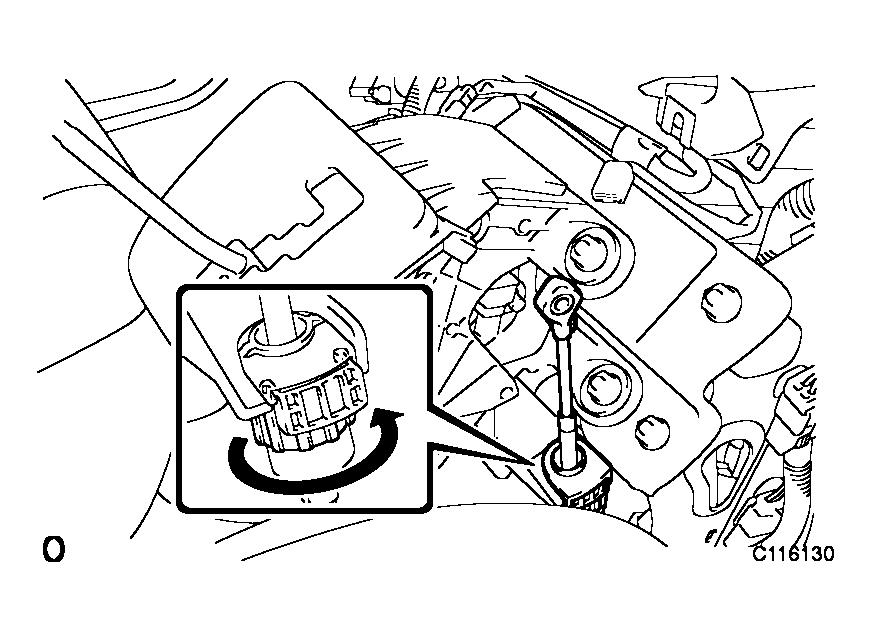

      Fig 4: Turning Socket Of Transmission Control Cable Counterclockwise
      G04112713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE SHIFT LEVER
    1. Disconnect the pattern select switch connector, the shift lock control computer connector and the indicator light wire connector.

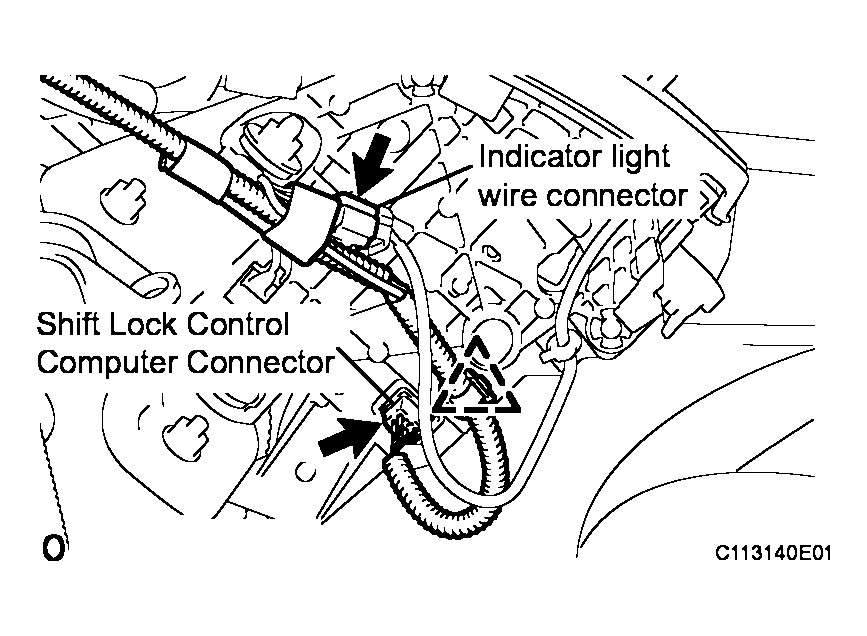

      Fig 5: Identifying Shift Lock Control Computer Connector And Indicator Light Wire Connector
      G04112714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and disconnect the shift lever assembly from the vehicle.

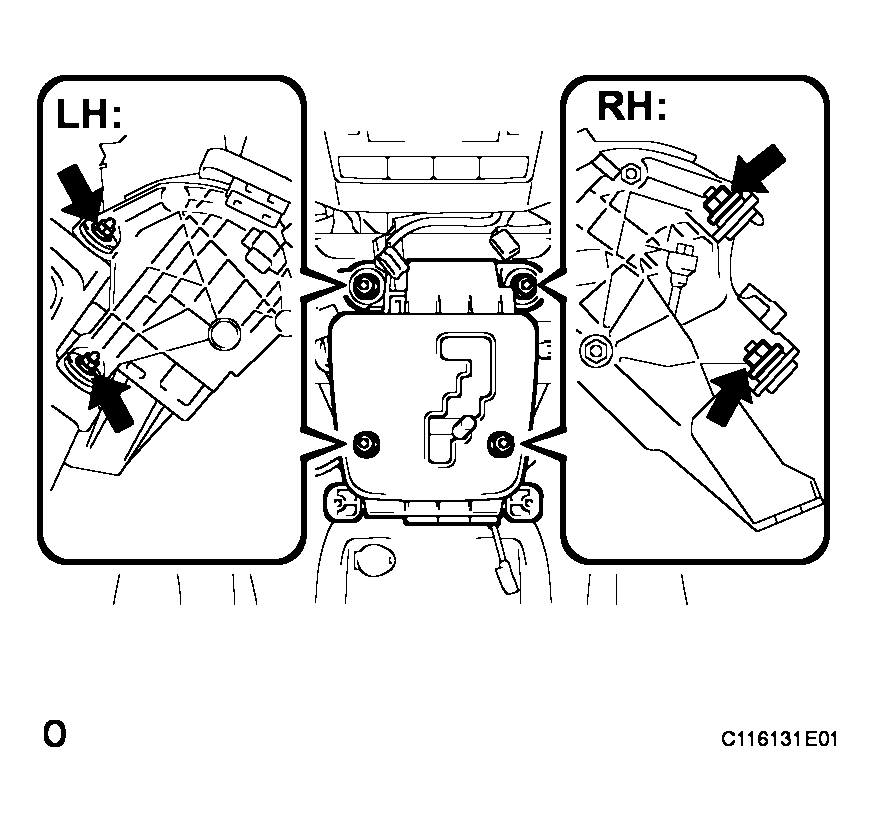

      Fig 6: Identifying Shift Lever Assembly
      G04112715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
