Shift Lever Position Sensor: Components

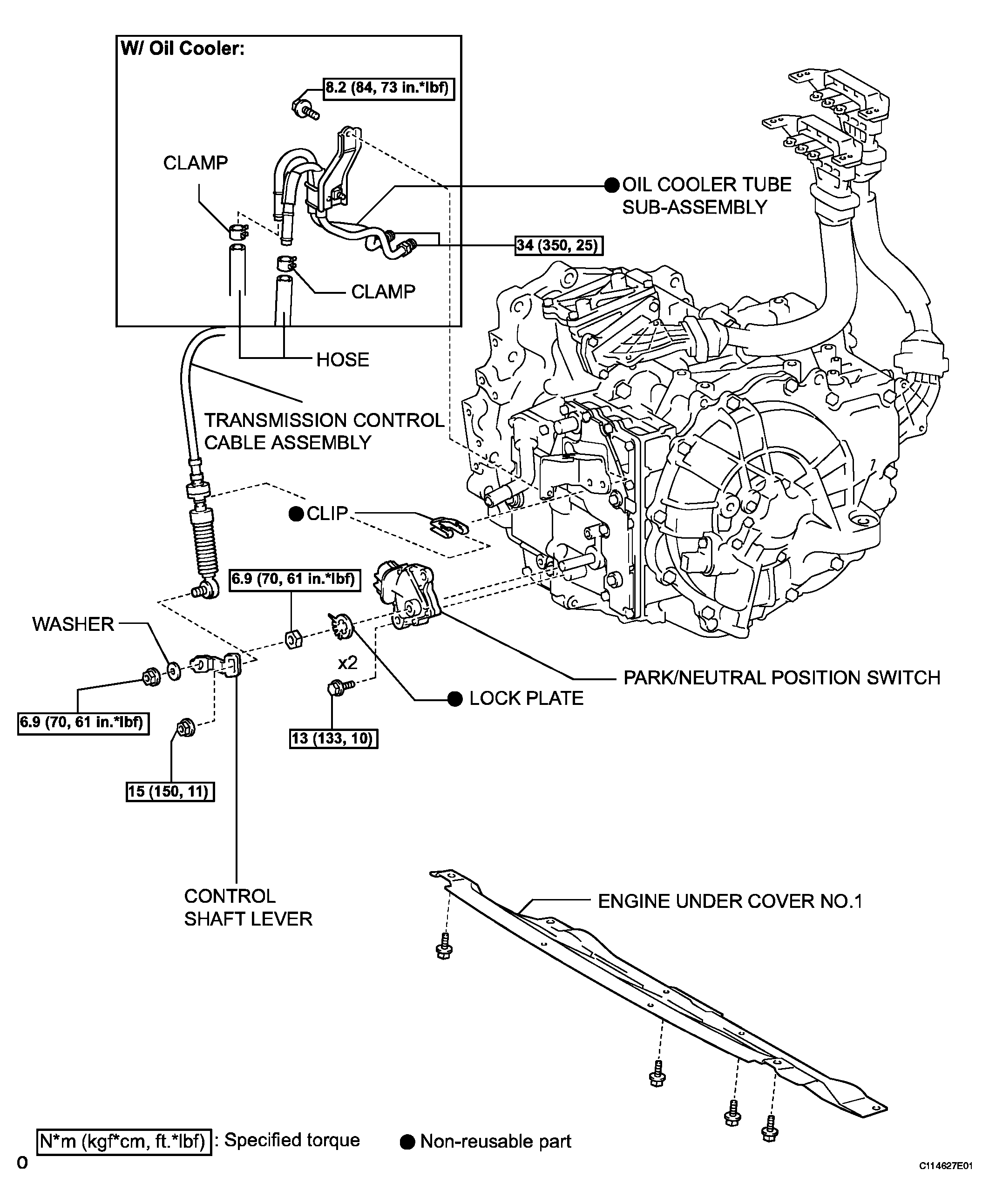

Fig 1: Shift Lever Position Sensor Replacement Components With Torque Specifications

G04112655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
